Programming Assignment 2 - Device Management

Operating Systems, Spring 2012


Table of Contents

Due Date

This assignment is due on Monday, 19 March, no later than 11:30 p.m. Note the due date is during Spring Break. See the turn-in page (last modified on 2012 March 6) for information about turning in your assignment.

Prerequsites

Make sure you have read and understand the simulator (last modified on 2012 March 12) and hardware (last modified on 2012 February 14) documentation before you wade into this assignment. There are links below into relevant documents, but you need to have an over-all view of both the simulator and the hardware for the parts to make sense. These pages have been modified to describe the hardware and simulator parts new for this assignment.

Introduction

This assignment extends the operating system developed in the previous assignment by adding device management. This new operating-system version gives user processes access to the disk and terminal devices, and lets the user process read and write data to and from the disk and terminal.

Device Allocation Policies

A device allocation policy determines how and when a user process may obtain access to a device.

Disk Allocation

The disk allocation policy provides unlimited concurrent access to the disk by allowing the disk to be opened by any number of processes. This means the open system call should never return Hardware.Status.deviceBusy.

Terminal Allocation

The terminal allocation policy provides exclusive access to the terminal by allowing the terminal to be opened by at most one process. Any process that attempts to open the already opened terminal should receive the Hardware.Status.deviceBusy status code in response to the open system call.

Device Management Policies

A device management policy determines what a process may do to a device, and how the device behaves.

Disk Management Policy

The disk management policy presents the operating system’s view of the disk to the user process. A user process' view of the disk is the same as the operating system’s view of the disk; that is, the disk appears to a user process as an C-style array of disk blocks.

This policy is known as raw disk management, and is important for those application, such as data-base applications, that need to control all aspects of data movement between disk and primary store.

Terminal Management Policy

The terminal management policy makes the terminal appear to a user process as a character-oriented device which can read and write a variable-number of bytes in one operation.

The terminal management policy also specifies the terminal line discipline (or just "line discipline" when the terminal part is understood), which specifies how, if at all, the operating system should interpret the characters being read and written from the terminal on behalf of the user process. The input line discipline applies to the characters being read from the terminal, and the output line discipline applies to the characters being written to the terminal.

The input line discipline in this project is simple: the operating system interprets only the Hardware.Terminal.eosCharacter end-of-stream character; all other bytes read from the terminal except the end-of-stream character are uninterpreted. When the end-of-stream character appears in the byte stream from the terminal, it should be removed from the stream and no further bytes from the terminal should be passed along until the terminal is closed and re-opened again.

The output line discipline is even simpler than the input line discipline: there is none. All bytes from the user process are passed along to the terminal without interpretation.

Device Management System Calls

The system calls that should be supported by the operating system are (the constant in parenthesis is the value in register 0):

open system call (OperatingSystem.SystemCall.open)
Open an I-O connection to the device d; d is passed in CPU register 1. Legal values for d are Hardware.Disk.device and Hardware.Terminal.device.

open sys call arguments and results

After the open system call ends, CPU register 0 contains the system call status:

Hardware.Status.okcommand completed successfully
Hardware.Status.deviceBusyrequested device has already been allocated
Hardware.Status.badDevicethe value d in CPU register 1 is not Hardware.Disk.device or Hardware.Terminal.device

If the open system call completed successfully, CPU register 1 contains a connection identifier, which must be included as an argument to other system calls related to this device. If the open system call didn’t complete successfully, CPU register 1 contains an undefined value.

close system call (OperatingSystem.SystemCall.close)
The currently executing process is closing its connection to the device associated with the connection id passed in CPU register 1.

close sys call arguments and results

After the close system call ends, CPU register 0 contains the system call status:

Hardware.Status.okcommand completed successfully
Hardware.Status.badDevicethe connection id in CPU register 1 is not associated with any device

If the close system command completes successfully, the connection id held by the user process becomes invalid and may not usefully be used in any other system call.

read system call (OperatingSystem.SystemCall.read)
The currently executing process wants to read data from the device associated with connection id given in CPU register 1. The data read from the device are placed in Primary Store starting at the address given in CPU register 2. The interpretation of the contents of CPU register 3, n, depends on the type of device from which the data are being read. If the disk is being read, then n is the disk block number to read; if the terminal is being read, then n is the maximum number of characters to read from the terminal.

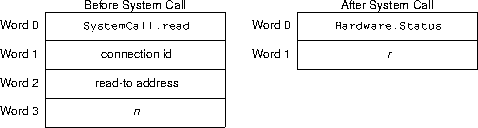

read sys call arguments and results

After the read system call is completed, CPU register 0 contains system call status:

Hardware.Status.okcommand completed successfully
Hardware.Status.badDevicethe connection id in CPU register 1 is not associated with any device
Hardware.Status.badAddressthe Primary Store address in CPU register 2 is bad
Hardware.Status.badCountthe contents of CPU register 3 is bad

If the read system command completes successfully, CPU register 1 contains either the number of the disk block read if the read was from the disk or the number of characters read from the terminal if the read was from the terminal. The number of characters actually read from the terminal may be smaller (never larger) than the number of characters requested if the terminal sends an end-of-file character during the read. Once a terminal receives the eof-character, it will always read 0 characters until the terminal is closed and reopened.

write system call (OperatingSystem.SystemCall.write)
The currently executing process wants to write data to the device associated with connection id given in CPU register 1. The data written to the device are located in Primary Store starting at the address given in CPU register 2. The interpretation of the contents of CPU register 3, n, depends on the type of device to which the data are being written. If the disk is being written, then n is the disk block number to which the data will be written; if the terminal is being written, then n is the number of characters to write to the terminal.

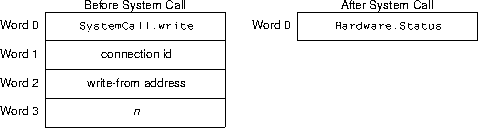

write sys call arguments and results

After the write system call is completed, CPU register 0 contains the system call status:

Hardware.Status.okcommand completed successfully
Hardware.Status.badDevicethe connection id in CPU register 1 is not associated with any device
Hardware.Status.badAddressthe Primary Store address in CPU register 2 is bad
Hardware.Status.badCountthe contents of CPU register 3 is bad

Interrupt Handlers

This assignment introduces a new interrupt, the terminal interrupt, which the operating system has to handle.

Running the Simulator

The simulator command line remains the same as it was in the first assignment. However, because the simulator may need to read two media files — one for the disk and one for the terminal — the simulator tries to figure out the name of the other media file from the name of the media file given on the command line.

Test Device Files

In addition to the pa1 batch disk, some new batch disks have been added to the assignment directory /export/home/class/cs-os/pa2 to test the new features added to your operating system. Because programs in the pa2 disks write to devices, the simulator creates the result files results.dsk and results.tty to represent the modified device media; the original device files are left unchanged. The result files are created only if the simulator ends execution successfully.

pa2-diskio.dsk
Contains a single process that repeatedly read and writes the last block on the disk, writing a new word in the disk block each time. When finished, the last block contains the values 51100 through 51131 in succession.

$ java -ea -cp /export/home/class/cs-os/pa2/pa2-YYMMDD.jar:. \
    main os-class /export/home/class/cs-os/pa2/pa2-diskio.dsk

The system is halted.
Total execution time:  1919 ticks, idle time:  1132 ticks (58%).

$ java -jar /export/home/class/cs-os/bin/pdb-*.jar results.dsk 511
Block 511
0000051100 0000051101 0000051102 0000051103
0000051104 0000051105 0000051106 0000051107
0000051108 0000051109 0000051110 0000051111
0000051112 0000051113 0000051114 0000051115
0000051116 0000051117 0000051118 0000051119
0000051120 0000051121 0000051122 0000051123
0000051124 0000051125 0000051126 0000051127
0000051128 0000051129 0000051130 0000051131

$

pa2-dio-checked.dsk
Contains two programs; one reads and writes the disk as in pa2-diskio.dsk and the other checks the disk block once the first program is done. These program check their work, so if you don’t get an error message, everything worked.

pa2-dio-shared.dsk
Contains the same two programs as pa2-dio-checked.dsk and other programs that do nothing but fill up user space. Tests disk sharing between the operating system and user processes. These program check their work, so if you don’t get an error message, everything worked.

pa2-3dio.dsk
Contains three copies of the program in pa2-diskio.dsk, each working on one of the last three blocks in the disk. Test disk sharing among user processes. These programs don’t check their work.

$ java -ea -cp /export/home/class/cs-os/pa2/pa2-YYMMDD.jar:. \
    main os-class /export/home/class/cs-os/pa2/pa2-3dio.dsk

The system is halted.
Total execution time:  3976 ticks, idle time:  1598 ticks (40%).

$ java -jar /export/home/class/cs-os/bin/pdb-*.jar results.dsk 509 510 511
Block 509
0000050900 0000050901 0000050902 0000050903
0000050904 0000050905 0000050906 0000050907
0000050908 0000050909 0000050910 0000050911
0000050912 0000050913 0000050914 0000050915
0000050916 0000050917 0000050918 0000050919
0000050920 0000050921 0000050922 0000050923
0000050924 0000050925 0000050926 0000050927
0000050928 0000050929 0000050930 0000050931
Block 510
0000051000 0000051001 0000051002 0000051003
0000051004 0000051005 0000051006 0000051007
0000051008 0000051009 0000051010 0000051011
0000051012 0000051013 0000051014 0000051015
0000051016 0000051017 0000051018 0000051019
0000051020 0000051021 0000051022 0000051023
0000051024 0000051025 0000051026 0000051027
0000051028 0000051029 0000051030 0000051031
Block 511
0000051100 0000051101 0000051102 0000051103
0000051104 0000051105 0000051106 0000051107
0000051108 0000051109 0000051110 0000051111
0000051112 0000051113 0000051114 0000051115
0000051116 0000051117 0000051118 0000051119
0000051120 0000051121 0000051122 0000051123
0000051124 0000051125 0000051126 0000051127
0000051128 0000051129 0000051130 0000051131

$

pa2-bad.dsk, pa2-bad.tty
Contains a bunch of programs that do bad things. A correct execution prints no error messages.

$ java -ea -cp /export/home/class/cs-os/pa2/pa2-YYMMDD.jar:. \
    main os-class /export/home/class/cs-os/pa2/pa2-bad.dsk

The system is halted.
Total execution time:  283 ticks, idle time:  149 ticks (52%).

$

pa2-ttycopy.dsk, pa2-ttycopy.tty
Contains a program that read and writes the terminal. A correct execution creates a results.tty file identical to pa2-ttycopy.tty.

$ java -ea -cp /export/home/class/cs-os/pa2/pa2-YYMMDD.jar:. \
    main os-class /export/home/class/cs-os/pa2/pa2-ttycopy.dsk

The system is halted.
Total execution time:  2752 ticks, idle time:  792 ticks (28%).

$ diff /export/home/class/cs-os/pa2/pa2-ttycopy.tty results.tty

$

If you’re looking for a way to proceed, you might want to consider the following steps:

  1. Get your operating system to work with the diskio disk. This makes sure your operating system is managing the disk correctly. Once diskio works, then dio-checked, dio-shared, and 3dio should work too. Your operating system should be able to do at least this much.

  2. Make sure the bad-programs disk works.

  3. Get the ttycopy disk to work. This makes sure your operating system is managing the terminal correctly.

  4. Make sure the pa1 disks still work correctly.

Example Solution

The executable pa2os in the assignment directory is an example solution to this assignment. The solution can be run with the command line

/export/home/class/cs-os/pa2/pa2os [options] batchDisk [terminalInput]

where options, batchDisk, and terminalInput are as they are for the simulator command line.

Although pa2os is written in Java, it is compiled to native code, and will only run on systems similar to rockhopper. Unlike a class-based program, pa2os will not run on Microsoft or Mac systems (unless you use a Linux emulator).


This page last modified on 2012 March 12.
