Operating Systems Project, Spring 2012

Table of Contents

• Introduction
• The Project Directory
• Simulator Implementation Structure
• The Simulator-Operating System Interface
• Writing the Code
  • Debug Printing
• Running the Simulator
  • The -d Simulator Command-Line Option

Introduction

The hardware simulator code and your operating system code combine to form the simulation program. However, it’s easier to understand the simulation program if the hardware and operating system code are thought of as being separate parts of the simulation program. As with a real computing system, the connection between the hardware and the operating system occurs at the interrupt handlers.

Unlike a real computing system, however, the operating system in the simulation program does not run on the hardware it controls. The operating system executes as native Java code, while user processes execute on the simulated hardware. This may be a bit confusing at first, particularly for those that have written native operating systems, but this approach is much simpler than writing a native operating system, and the fundamental concepts used in each are the same.

The Project Directory

Files related to the simulator can be found under the /export/home/class/cs-os/pai project directory, where i is the assignment number (1, 2, 3, or 4). The project directory should be accessible from most Monmouth University machines.

The simulator jar contains all the code needed to build a simulator, including main(). To run the simulator, type

java -cp /export/home/class/cs-os/pai/pai-yymmdd.jar:. main yourOS batchDiskName

The simulator is written in Java version 6. The simulator jar should be backwards compatible with earlier versions of Java (I have not tested this), but upgrading to version 6 is a good idea.

Simulator Implementation Structure

The simulator comprises many classes, but five constituent classes are the most important. Four of the important classes correspond to the four pieces of the hardware architecture: CPU, Primary Store, Disk, and Terminal. The fifth class, the Hardware-Architecture class, corresponds to the complete hardware architecture.

The Hardware interface extends the PrimaryStore interface; the remaining three classes are represented as private instances and cannot be directly accessed from outside the class implementing the Hardware interface. The private members of the Hardware class are accessed indirectly through Primary Store, as described in various sections of the hardware architecture description.

The simulator creates a single of instance of the class implementing the Hardware interface. The system class has three public members: its constructor, an initialize-and-execute routine, and a pointer to an object of type class memory. The first two public members should not be accessed by operating system code; only the pointer to memory is properly a public member.

The PrimarayStore interface defines the fetch() and store() methods to read and write Primary Store. There are a few other public members available to help simplify code; see PrimaryStore.java in the class directory for details.

The Hardware interface Hardware.java defines a number of named constants that act as parameters for the hardware architecture; such parameters include Primary Store size, the way Primary Store’s partitioned into System, User, and Device Space, and so on. See Hardware.java in the class directory for details. The actual value of the named constants may change at any time; it is important that your code use the named constants and not the actual values.

The Simulator-Operating System Interface

void interrupt_handler(interrupt_types);

passing in the identifying code for the interrupt. Your code takes over, and what happens after that is entirely up to you. When your interrupt handler returns, either by a return statement or by falling off the end of the interrupt handler, the simulator resumes executing the user process.

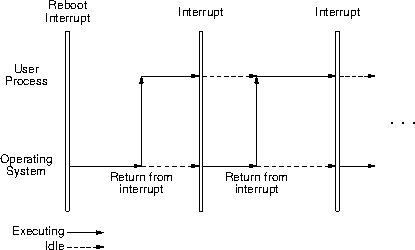

This see-sawing between the user process and the operating system continues until there are no more user processes to execute, at which point the operating system halts the system.

The interrupts that occur may or may not be a result of the executing user process. If the user process makes a system call, then it will generate a system-call interrupt. If, however, the operating system starts a disk read to bring in the next user program, then the resulting disk-io interrupt has nothing to do with the executing user process.

Writing the Code

The simulator and my implementation of the operating system were developed using Java version 6. Relying on backward compatibility, it should be possible to implement the assignments with an earlier Java version, but it’s probably best to upgrade to (or install) the most recent JDK.

javac -cp /export/home/class/cs-os/pai/pai-yymmdd.jar:. other-options file.java

$ javac -cp /export/home/class/cs-os/pa1/pa1-120207.jar:. -Xlint scheduler.java

$

-Xlint is a javac option that checks for legal but questionable code.

Debug Printing

As a convenience, the simulator defines the main.debugPrinter.log() method for printing debugging messages to std-err. The advantage to using main.debugPrinter.log() over printing to std-err is that you can use the -d option on the simulator command line to control which main.debugPrinter.log() calls generate output.

void log(String flag, String msg)

main.debugPrinter.log("interrupts",
  String.format("tick %4d:  %s interrupt raised.%n",
    clock, Hardware.Interrupt.reboot));

produces output if the flag "interrupts" (without the double quotes) appeared as part of a -d option on the simulator command line; if "interrupts" didn’t appear as part of a -d option, then the example main.debugPrinter.log() method call produces no output.

boolean isFlagged(String flag)

For example

if (main.debugPrinter.isFlagged("syscall")) {
  // Really complicated output about system calls or whatever.
  }

isFlagged(flag) returns true if and only if flag appeared as part of the flag-list argument to the -d simulator command-line option.

Running the Simulator

java -cp /export/home/class/cs-os/pai/pai-yymmdd.jar:. \
    main [options] osClass batchDisk [terminalInput]

where

• i and yymmdd are as described above.
• options is an optional list of command-line options.
• osClass is the name of the class implementing the OperatingSystem interface.
• batchDisk is the name of the .dsk file the operating system should use for the disk.
• terminalInput is the name of the optional .tty file the operating system should use for terminal input.

$ java -cp /export/home/class/cs-os/pa1/pa1-120218.jar:. \
    main os /export/home/class/cs-os/pa1/pa1-empty.dsk

The system is halted.
Total execution time:  10 ticks, idle time: 9 ticks (90%).

$

The .dsk extension may be omitted:

$ java -cp /export/home/class/cs-os/pa1/pa1-120218.jar:. \
    main os /export/home/class/cs-os/pa1/pa1-empty

The system is halted.
Total execution time:  10 ticks, idle time: 9 ticks (90%).

$

If the programs on the batch disk do terminal I-O, the simulator command-line should also contain a terminal-input file. For example

$ java -cp /export/home/class/cs-os/pa2/pa2-120311.jar:. \
    main os.class /export/home/class/cs-os/pa2/pa2-ttycopy.dsk \
    /export/home/class/cs-os/pa2/pa2-ttycopy.tty

The system is halted.
Total execution time:  2653 ticks, idle time: 785 ticks (29%).

$

The .tty extension may be omitted. If the terminal-input file has the same name as the batch disk, the terminal-input filename may be omitted, and the simulator will automatically open it:

$ java -cp /export/home/class/cs-os/pa2/pa2-120311.jar:. \
    main os.class /export/home/class/cs-os/pa2/pa2-ttycopy.dsk

The system is halted.
Total execution time:  2653 ticks, idle time: 785 ticks (29%).

$

The simulator does not change the device simulation files; the same files may be used repeatedly, independent of the I-O operations performed on the device. At the end of a simulation, the simulator creates the files results.dsk and results.tty. The file results.dsk represents the state of the disk at the end of the simulation; the file results.tty contains all the data sent to the terminal during the simulation. If a device is not written to during a simulation, the associated results file is not created.

The -d Simulator Command-Line Option

The -dflag-list command-line option controls which of the main.debugPrinter.log() calls writes output to std-err. The argument flag-list is a comma separated list of debugging-print flags; spaces should not appear in the list.

If a main.debugPrinter.log() call includes one of the listed flags in its flags argument, then it writes to std-err, otherwise, it produces no output. For example, given the main.debugPrinter.log() call

main.debugPrinter.log("time", String.format("The time is %d.%n", read_clock()));

The command-line option -d time causes the call to produce output; the call produces no output if the command-line option was -d interrupts,systemcalls.

• diskio - output disk I-O information.
• terminalio - output terminal I-O information.
• instructioncounts - output instruction counts on system halt.
• interruptcounts - output interrupt counts on system halt.
• interrupts - output interrupts.
• registers - output register contents before and after interrupts.
• systemcalls - output system calls.
