Project 2 - Simple RPC

See the assignment turn-in page (last modified on 25 February 2003) for instructions on turning in your assignment.

A single sRPC server implements a single service, which consists of one or more calls. Clients of a particular sRPC server can make any of the calls supported by the server. For example, an sRPC server may act as an Accordion server, supporting the calls play(), deal(), tableau(), and quit().

An sRPC service call is similar to a normal subroutine or method call, except that an sRPC service call is more limited in the types of parameters it can use. An sRPC service-call parameter can be an integer, a string, or an array. An integer is a signed, 32-bit value. An sRPC string is a sequence of zero or more seven-bit ASCII characters; an sRPC string is not zero terminated. An sRPC array is a sequence of zero or more values of the array's base type. sRPC arrays are dynamic; they have no fixed maximum size. sRPC Arrays are also recursive; an array's base type may also be an array.

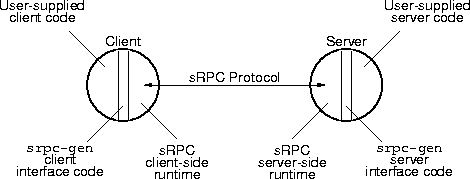

In left to right order, the components of the system are:

• User supplied client code: The code that accesses sRPC services via the service calls implemented by the service.

• sRPC client interface code: The code that supplies the service calls used by the client code.

• sRPC client-side runtime system: The code responsible for making the sRPC service calls on behalf of the client.

• sRPC protocol: However it is that the sRPC client and server runtimes decide to communicate.

• sRPC server-side runtime: The code responsible for handing off the incoming service calls to the server code and returning the results to the client.

• sRPC server interface code: The routines called by the sRPC server-side runtime in response to incoming service calls.

• User supplied server code: The code that implements the service calls provided by this service.

Although the diagram shows a single client, an sRPC server can handle multiple clients.

The sRPC runtime system is responsible for implementing all sRPC functions, including data marshaling, data transmission, and sRPC system-call semantics.

The sRPC runtime system is generic with respect to the services it supports; the same runtime system works with all possible services defined in sRPC. The srpc-gen interface-code generator is responsible for creating the code that bridges the gap between the specific requirements of a particular service and the generic facilities of the sRPC runtime system.

A service-description file is a text file with a simple format: a service name spec followed by one or more service-call specs. A service-name spec is a single line starting with the text service followed by an identifier giving the name of the service:

For example, the service-description file for the Accordion service might start with

service Accordion

Following the service-name spec is one or more service-call specs. A service-call spec consists of a call-name spec followed by zero or more call-parameter specs. A call-name spec is a single line starting with the text call followed by an identifier giving the name of the call:

Each call identifier must be unique among all call identifiers in the same specification file.

Each call-parameter spec is a single line of text consisting of a direction, a type spec, and an identifier:

The direction dir is either in or out and indicates if the parameter is an input (in) or output (out) parameter. type-spec indicates the parameter's type; type-spec can be one of int for an integer, string for a string, or array of type-spec for an array containing values of the given type. ident is the parameter's name; the identifier must be unique among all parameter names in the same service-call spec.

For example, this service-call spec

call tableau
in  array of array of int piles
in  string                state
out int                   difference
out string                error

describes the Accordion service's tableau call.

1. setup a local endpoint for an sRCp service and establish a connection to a remote sRPC server for the service.

   call setup
   in string  hostname
   in int     port_number
   out string emsg


   The sRCP server is located at hostname:port_number. This must be the first service call made by a client. If emsg is emtpy after a call to establish(), no error occurred during the call; otherwise, emsg contains an error description.

2. determine the service calls offered by the sRPC server.

   call query
   out string spec
   out string emsg


   After the call to query(), spec contains the server's service-description file and emsg contains an error indicator as described above.

3. shutdown the connection to the remote sRPC server and reclaim the resources allocated to the local endpoint.

   call shutdown
   out string emsg


   emsg contains an error indicator as described above. Once shutdown() is called for a particular endpoint, any other service calls to that endpoint are invalid.

   A call to shutdown() effects only the associated endpoint; any other endpoints to the same sRPC server, and any other endpoints to other sRPC servers, remain unchanged.

   The server-side generic service calls allow a server to

   1. initialize the server at the start of service.

      call initialize
      out string emsg


      emsg contains an error indicator as described above. initialize() is called once by the sRPC runtime code at the start of execution to initialize the implementor-supplied server code.

   2. shut-down the server code in preparation for stopping the server.

      call shutdown
      out string emsg


      emsg contains an error indicator as described above. shutdown() is called once by the sRPC runtime coded at the end of server execution.

   Notice that the server interface does not include the query() generic sRPC service call.

The specifics of binding sRPC depend on the host language. This section describes an sRPC binding to C++ as the host language; the bindings for other host languages will be similar.

The sRPC types are bound to the analogous types in C++:

Each service call is bound to a prototype of the form

The left-to-right order of the input parameters matches the top-to-bottom order of the in-parameter specs in the service-spec; similarly for the output parameters. An input-parameter spec

is bound to the formal parameter

or to

the choice is up to the sRPC implementor. An output-parameter spec

is bound to the formal parameter

As an example, the tableau service-call spec

call tableau
in  array of array of int piles
in  string                state
out int                   difference
out string                error

is bound to the prototype

void tableau(
  const std::vector<std::vector<int> > & piles,
  const std::string & state,
  int & difference,
  std::string & error
  )

The client-side generic sRPC service calls have the bindings

service-name(
  const std::string & hostname,
  short port_number,
  std::string & emsg
  )

void query(
  std::string & spec,
  std::string & emsg
  )

void shutdown(
  std::string & emsg
  )

The setup generic sRPC service call becomes the class's constructor, but the shutdown generic sRPC service call does not become the class's destructor (although the destructor may call shutdown() if it needs to).

On the server side, the service-call specs and server-specific generic sRPC service calls are bound to procedures in a namespace with the same name as the service.

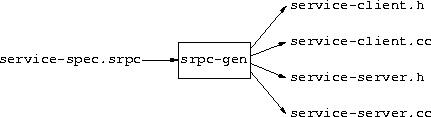

srpc-gen creates four C++ source files from a service-spec file:

The client.h file contains the declarations of the client-side interface routines defined in the client.cc file. Any implementer-supplied client-side code that make service calls needs to include the clients.h file.

The client.cc file contains the definitions of the client-side interface routines for the service. The implementer compiles and links this file with the client-side code.

The server.h file contains the declarations of the server-side interface routines called in the server.cc file. The server-side code implementing service calls needs to include the server.h file.

The server.cc file lets the sRPC server-side runtime system call-out to the implementor-supplied code for the service. The implementer compiles and links this file with the server-side code.

1. Write srpc-gen.

2. Write the sRPC runtime system, including the sRPC protocol.

service Accordion

Then would follow a sequence of service calls describing the interface to the accordion server:

call play
out string emsg
out string state

The client calls play() to request a game from the accordion server. play() accepts no input parameters and returns two strings. The first string is an error indication; the second string represents the state of the game.

call deal
in  string state
out string emsg
out int    card
out string state

The client calls deal() to receive another card from the hand. deal() accepts a single parameter, which is the most recently returned state string; the return parameters are an error message, the card dealt (assuming no error) and the updated state.

call tableau
in  array of array of int piles
in  string                state
out string                emsg
out int                   difference

The client calls tableau() at the end of the game to compare it's game against the server's game. The server returns an error indication and the difference between the number of piles in the two games.

call quit
in  string state
out string emsg

The client calls quit() to end the game prematurely.

Assuming this service-description file is named accordion.srpc and that srpc-gen produces C++ code, running accordion.srpc through srpc-gen produces the four files accordion-client.h, accordion-client.cc, accordion-server.h, and accordion-server.cc.
