Operating Systems Project, Fall 2001

Hardware Architecture

Introduction
Over-All Architecture
Hardware Components
Hardware Execution Behavior
System Calls

This page describes the hardware architecture of the computer system for which you will be writing an operating system. You won't actually be running your OS code directly on hardware, but will be adding it as part of some software that simulates the hardware architecture. However, to understand how the simulator is structured and how it behaves, you need to understand the hardware architecture being simulated.

To avoid dealing with the mind-numbing array of brain-damaged gotchas real computer architectures lay in the OS implementor's path, the hardware architecture described here is a combination of generic computer-architecture features; the whole is not representative of any real computer architecture. However, some architectural features, particularly the idea of making everything accessible by mapping into Primary Store, are based on Digital Equipment Corp.'s (DEC's, now Compaq's) PDP series of minicomputers.

Over-All Architecture

The over-all structure of the architecture is given by the following diagram:

There are four hardware components in the architecture: the CPU, the Primary Store, a disk, and a terminal. Of these four components, the Primary Store can be thought of as being the main component because all other components in the architecture are accessible through Primary Store.

Hardware Components

Primary Store

The word is the fundamental unit of storage; the hardware cannot directly deal with any quantity smaller than a word.

Primary Store is represented as an array of words. The index associated with each word is also known as the word's address. The arrays are indexed as they are in C: starting from zero and increasing by 1 for each successive array element.

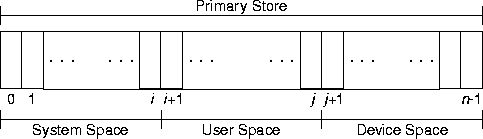

Primary Store is partitioned into three contiguous subarrays known as the the System Space, the User Space, and the Device Space:

These three areas are called "spaces" to emphasize that they are part of Primary Store.

Each space is defined by three constants: s_base, s_base, and s_base, where s is one of sys, usr, or dev. The constant values represent

s_base: The lowest accessible address in the associated space.
s_size: The number of words in the associated space.
s_top: One more than the highest accessible address in the associated space; that is s_top = s_base + s_size.

sys_base is the lowest accessible address in Primary Store and dev_top is one more than the highest accessible address in Primary Store. Note also that sys_top == usr_base and usr_top == dev_base.

User Space is divided into 32 page frames, where each page frame consists of 32 consecutive words of user space. Page frames are numbered from 0 to 31 with page frame 0 starting at Primary Store address 1024 and page frame 31 ending just before address 2048.

CPU

The two components of interest in the CPU are the CPU register set and the clock.

CPU Register Set

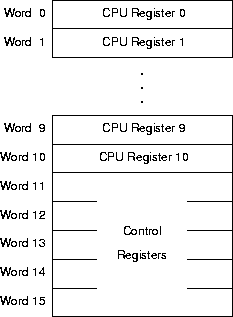

The CPU contains a set of sixteen CPU registers (or just registers when the context is clear). The CPU registers are mapped into the first sixteen words of System Space and are accessed like any other word of Primary Store.

The hardware uses the contents of five of the CPU registers to control various aspects of process execution; the hardware ignores the contents of the remaining eleven registers. The arrangement of registers in Primary Store is

The five registers used by the hardware are (the constant name in parenthesis is the address of the register)

Base Register (base_register)

The hardware interprets the contents of the Base Register as the lowest legal address accessible to the currently running process.

Top Register (top_register)

The hardware interprets the contents of the Top Register as one more than the highest legal address accessible to the currently running process.

Invalid-Address Register (ia_register)

Whenever an address triggers an invalid-address interrupt, the hardware stores the offending address in the Invalid-Address Register

Program Counter Register (pc_register)

The hardware interprets the contents of the Program Counter Register as the address of the next instruction to execute.

Program Status Register (ps_register)

The hardware interprets the contents of the Program Status Register as a representation of the currently running process's current state. The interpretation of the bits within the Program Status Register is

bit 0: Virtual memory indicator. If bit 0 is one, user processes are run in virtual memory with paging enabled. If bit 0 is zero, user process are run in User Space with paging disabled.
bit 1: If bit 1 is one, the most recent CMPR instruction found the greater-than relation. If bit 1 is zero, the greater-than relation didn't hold for the most recent CMPR instruction.
bit 2: If bit 2 is one, the most recent CMPR instruction found the less-than relation. If bit 1 is zero, the less-than relation didn't hold for the most recent CMPR instruction.
bit 3: If bit 3 is one, the most recent CMPR instruction found the equality relation. If bit 1 is zero, the equality relation didn't hold for the most recent CMPR instruction.
bits 4 through 7: Undefined and reserved for future use.
bits 8 through 15: (Byte 1) The id of the executing process.
bits 16 through 31: Undefined and reserved for future use.

Bits are numbered from right to left in a word; bit 0 is the rightmost bit in a word.

The Halt Register

The Halt Register determines when system execution stops. The Halt Register is mapped into a word in Device Space:

The constant halt_register gives the Device-Space addresses of the Halt Register.

Writing a value, any value, into the Halt Register ends simulator execution.

The Memory Management Unit

The Memory Management Unit (MMU) contains an array called the page table. The page table contains pages_in_user_space elements; each array element of the page table is a page-table entry. The i-th element in the page table corresponds to the i-th page fame in user space. The fields in a page-table entry are

accessed_at: An unsigned value containing the most recent time at which the corresponding page was read or written.
modified_at: An unsigned value containing the most recent time at which the corresponding page was written.
page_number: An unsigned value giving the page number of the page resident in the page frame associated with this page-table entry.
valid: A boolean value indicating whether or not the contents of this page-table entry are valid.
process_id: A byte value indicating to which process this page-table entry applies.

All fields can be manipulated by the operating system. The hardware also automatically sets accessed_at and modified_at on each reference to valid page-table entries.

Disk

A disk block is a non-empty array of words. A disk is a non-empty array of disk blocks. Disk-block and disk arrays are indexed as they are for C: starting from zero and increasing by one for each successive element. The size of the disk is fixed; that is, the number of disk blocks in the disk does not change. The constant disk_size gives the number of blocks in a disk. The size of each disk block is also fixed; all disk blocks in a disk have the same size. The constant disk_block_size gives the number of words in a disk block.

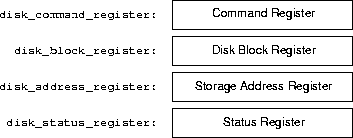

A disk is controlled through a set of four disk registers mapped into a group of four words in Device Space:

The constants disk_command_register, disk_block_register, disk_address_register, and disk_status_register give the Device-Space addresses of the associated disk registers.

The function of each disk register is (the constant name in parenthesis is the Device-Space address of register)

Disk command register (disk_command_register)

Writing a value to the Disk Command Register starts a disk operation.

Writing the value device::read to the Disk Command Register initiates disk input: the disk block at the address contained in the Disk Block Register is moved from the disk to Primary Store starting at the address contained in the Disk Address Register.

Writing the value device::write to the Disk Command Register initiates disk output: the data from the sequence of words starting at the address given in the Disk Address Register and continuing through the size of a disk block is copied from Primary Store and written to the disk block at the address contained in the Disk Block Register.

Any value other than device::read or device::write written to the Disk Command Register is interpreted as an illegal command code.

Disk Block Register (disk_block_register)

The Disk Block Register contains the address of a disk block. Whether the addressed disk block is read from or written to the disk depends on the command written to the Disk Command Register.

Disk Address Register (disk_address_register)

The Disk Address Register contains the lowest address in a sequence of n Primary Store addresses, where n is the size of a disk block in words. Whether the contents of the sequence is written to disk or replaced by data read from the disk depends on the command written to the Disk Command Register.

Disk Status Register (disk_status_register)

The Disk Status Register contains the status of the most recently issued disk i-o operation. The Status Register is a read-only register; the contents of the Disk Status Register is undefined until the most recently issued disk i-o operation is finished. Possible contents of the Disk Status Register and their interpretations are

`status::ok`	command completed successfully
`status::bad_command`	unrecognized command
`status::bad_block_number`	bad disk-block number
`status::bad_memory_address`	bad primary-store address

Terminal

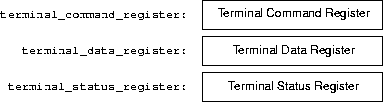

A terminal is controlled through a set of three terminal registers mapped into a sequence of three consecutive words in Device Space:

The constants terminal_command_register, terminal_data_register, and terminal_status_register give the Device-Space addresses of the associated terminal registers.

The function of each terminal register is (the constant name in parenthesis is the Device-Space address of register)

Terminal Command Register (terminal_command_register)

Writing a value to the Terminal Command Register starts a terminal operation.

Writing the value device::read to the Terminal Command Register initiates terminal input: the next 8-bit character to arrive from the terminal is stored in byte 0 of the Terminal Data Register.

Writing the value device::write to the Terminal Command Register initiates terminal output: the contents of byte 0 in the Terminal Data Register is sent to the terminal.

A terminal-io command begins as soon as a command is written to the command register, using the value contained in the data registers (if writing). Once a command is started, writing a new value into the data register has no effect on the in-progress operation.

Any value other than device::read or device::write written to the Terminal Command Register is interpreted as an illegal command code.

Terminal Data Register (terminal_data_register)

The contents byte 0 in the Terminal Data Register is the most recent 8-bit value either read from or written to the terminal, depending on the value written to the Terminal Command Register.

Terminal Status Register (terminal_status_register)

The Terminal Status Register contains the status of the most recently issued terminal i-o operation. The Status Register is a read-only register; the contents of the Terminal Status Register is undefined until the most recently issued terminal i-o operation is finished. Possible contents of the Terminal Status Register and their interpretations are

`status::ok`	command completed successfully
`status::bad_command`	unrecognized command

Hardware Execution Behavior

The hardware architecture's execution behavior is so simple and generic that you should already have a fairly good general idea of how it behaves. This section describes some aspects of hardware execution you need to keep in mind when designing your operating system.

Process Address Space

A process address space is the contiguous range of valid addresses in which a process executes. The structure of a process address space depends on whether the associated user process runs under virtual memory or not (see the the Program Status Register description to determine how a user process runs under virtual memory or not).

The Virtual Process Address Space

Under virtual memory, the process address space comprises 2048 words; a virtual address contains 11 bits. The valid virtual addresses in a process address space range from vmem_base (inclusive) to vmem_top (exclusive). A process need not occupy all its process address space; if it does not, then any attempt to access an address in the unoccupied area of the process address space should cause an invalid address interrupt.

A process address space is broken up into 64 pages, where each page is a contiguous sequence of 32 words. The pages are numbered from 0 to 63, where page 0 contains address vmem_base and page 63 contains address vmem_top - 1.

Given an 11-bit virtual address va, the leftmost 6 bits of va determine the page number associated with va; the rightmost 5 bits of va determine the page offset within the page at which the word addressed by va lies.

The Physical Process Address Space

If virtual memory is not in enabled, processes execute in the the physical process-address space.

The physical process-address space comprises the 1024 words making up User Space. The valid addresses in a physical process address space range from usr_base (inclusive) to usr_top (exclusive). A process need not occupy all its physical process address space; if it does not, then any attempt to access an address in the unoccupied area of the physical process address space should cause an invalid address interrupt.

A physical address is interpreted as the 10-bit address of a word in User Space and is not further broken down into component values.

Paging

If a user process is executing under virtual memory, then every address va issued by the CPU is run through the Memory Management Unit (MMU) to determine where - or if - the page holding va resides in user space.

Upon receiving the virtual address va, the MMU looks for a process-table entry having the following characteristics:

valid is true.
process_id matches the process id of the currently executing process.
The page number from va matches page_number.

If such a page-table entry exists, the MMU translates va into a physical address in User Space; otherwise the MMU throws an invalid address interrupt. When the MMU throws an invalid address interrupt, the PC is reset to point to the instruction containing the invalid address.

If a user process is not executing under virtual memory, then every address issued by the CPU is used to access user space directly without translation.

Interrupts

An interrupt changes execution mode from user mode to system mode. At the same time, the interrupt changes the code being executed. Interrupts don't occur in system mode; any interrupts raised during system mode are queued and re-raised when user mode is re-established.

There are seven interrupts defined. Different interrupts cause different code to be executed under system mode. The seven interrupts defined are (the constant name in parenthesis is the offset from next_register)

Illegal instruction interrupt (illegal_instruction_i): Occurs when the CPU encounters an instruction it doesn't understand.
Reboot interrupt (reboot_i): Occurs on system start-up.
System call interrupt (system_call_i): Occurs when the SYSC instruction is executed.
Invalid address interrupt (invalid_address_i): Occurs when the executing program attempts to access an address that is either non-existent or outside the legal range defined by user mode.
Disk interrupt (disk_i): Occurs when the disk finishes the most recently initiated I-O operation.
Terminal interrupt (terminal_i): Occurs when the terminal finishes the most recently initiated I-O operation.
Countdown interrupt (countdown_i): Occurs when a countdown reaches zero.

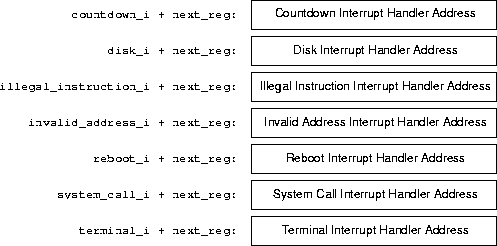

The interrupt vector is a set of seven words in System Store that gives the addresses of the code that executes when an interrupt occurs. The interrupt vector occupies storage just above the register set:

The contents of each word is interpreted as the starting address of the code which will be executed when the associated interrupt occurs.

Device Execution

The disk and the terminal have essentially the same execution behavior, and so will be described together using the generic term "device".

A device begins an operation as soon as a value is written into its Command Register. The device copies the values stored in the argument registers into internal registers at the start of the operation; the argument registers may be rewritten without effecting the operation in progress.

The appropriate interrupt (disk or terminal) is raised when the operation in progress ends. The contents of the Status Register for the operation in progress is undefined until the interrupt is raised. Writing a value into a Command Register always results in an interrupt, even when the status indicates an error.

Writing a value into a Command Register always starts a new operation. If an operation is in progress when a value is written into the Command Register, it is cancelled and a new operation is started. This behavior occurs whether or not the new operation succeeds or fails.

System Calls

A process running in user mode requests services from the operating system by executing the SYSC instruction, which raises a System-Call Interrupt. System-call arguments and results are passed between the process and the operating system via the CPU registers. CPU register 0 always contains a value indicating the system-call type; other CPU registers may or may not be used depending on the system call types.

The system calls that should be supported by the operating system are (the constant in parenthesis is the value in register 0):

Process Management System Calls

exit system call (system_call::exit)

The currently executing process is finished. No arguments, and no return from this system call.

put message system call (system_call::put_msg)

The calling process puts a message in the message pool. The calling process places the message tag in register 1 and the message data in register 2.

After the put-message system call returns, register 0 contains the system call status:

`status::ok`	command completed successfully
`status::message_pool_full`	there is no space left in the message pool to store new messages

The contents of registers 1 and 2 remain unchanged after the system call returns.

get message system call (system_call::(<code>system_call::get_msg</code>))

The calling process gets a message from the message pool. The calling process places a message tag in register 1.

After the put-message system call returns, register 1 is unchanged and register 2 contains the message data from a message having a tag equal to the tag given in register 1; the matching message is removed from the message pool. Register 0 always contains the value status::ok.

If no message in the message pool has a tag that matches the contents of register 1, the calling process blocks until such a message appears in the pool. If more than one message in the message pool has a matching tag, any one of the matching messages may be selected. Message selection should be fair, that is, if a message m in the pool has tag t and a continual sequence of processes try to get a message with tag t, then m should eventually be matched.

A message can be matched by a process at most once. If more than process is blocked waiting for a message, than any one of the blocked processes may be selected once the message is placed in the pool. Process selection should also be fair, that is, if a process p is blocked waiting for a message and a continual sequence of matching messages are put in the pool, then p should eventually match a message and unblock.

Device Management System Calls

open system call (system_call::open)

Open an I-O connection to the device d; d is passed in CPU register 1. Legal values for d are device::disk and device::terminal. The status of the open system call is returned in CPU register 0; the possible status codes are

After the open system call is completed, CPU register 0 contains the system call status:

`status::ok`	command completed successfully
`status::device_busy`	requested device has already been allocated
`status::bad_device`	the value d in CPU register 1 is not `device::disk` or `device::terminal`

If the open system call completed successfully, CPU register 1 contains a device identifier, which must be included as an argument to other system calls related to this device. If the open system call didn't complete successfully, the contents of CPU register 1 is undefined.

close system call (system_call::close)

The currently executing process is closing its connection to the device associated with the device id passed in CPU register 1. The status code for the close system call is passed back to the user process in CPU register 0, and is one of the values

After the close system call is completed, CPU register 0 contains the system call status:

`status::ok`	command completed successfully
`status::bad_device`	the device id in CPU register 1 is not associated with any device

If the close system command completes successfully, the device id held by the user process becomes invalid and may not usefully be used in any other device system call.

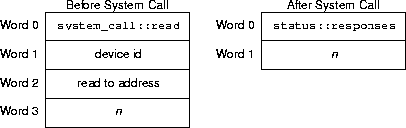

read system call (system_call::read)

The currently executing process wants to read data from the device associated with device id given in CPU register 1. The data read from the device are placed in Primary Store starting at the address given in CPU register 2. The interpretation of the contents of CPU register 3, n, depends on the type of device from which the data are being read. If the disk is being read, then n is the disk block number to read; if the terminal is being read, then n is the maximum number of characters to read from the terminal.

After the read system call is completed, CPU register 0 contains system call status:

`status::ok`	command completed successfully
`status::bad_device`	the device id in CPU register 1 is not associated with any device
`status::bad_address`	the Primary Store address in CPU register 2 is bad
`status::bad_count`	the contents of CPU register 3 is bad

If the read system command completes successfully, CPU register 1 contains either the number of the disk block read (if the read was from the disk) or the number of characters read from the terminal (if the read was from the terminal). The number of characters actually read from the terminal may be smaller (never larger) than the number of characters requested if the terminal sends an end-of-file character during the read. Once a terminal receives the eof-character, it will always read 0 characers.

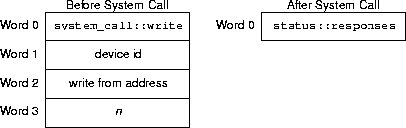

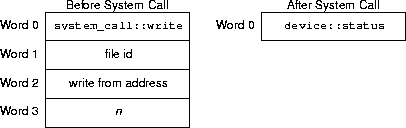

write system call (system_call::write)

The currently executing process wants to write data to the device associated with device id given in CPU register 1. The data written to the device are located in Primary Store starting at the address given in CPU register 2. The interpretation of the contents of CPU register 3, n, depends on the type of device to which the data are being written. If the disk is being written, then n is the disk block number to which the data will be written; if the terminal is being written, then n is the number of characters to write from the terminal.

After the write system call is completed, CPU register 0 contains the system call status:

`status::ok`	command completed successfully
`status::bad_device`	the device id in CPU register 1 is not associated with any device
`status::bad_address`	the Primary Store address in CPU register 2 is bad
`status::bad_count`	the contents of CPU register 3 is bad

File Management System Calls

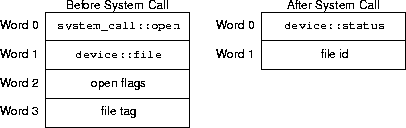

open system call (system_call::open)

Open a file; register 1 should contain device::file. Register 3 contains the integer identifying the file to open. Register 2 contains a set of flags indicating how the file should be opened:

file_io::read: Open the file for reading.
file_io::write: Open the file for writing.
file_io::create: If the file doesn't exist, create it and then open it. If the file does exist, the open fails.
file_io::exists: Open the file only if it exists. If the file doesn't exist, the open fails.
file_io::exclusive: Open the file only if no other process currently has the file open. Once a file has been opened exclusively, no other open of any kind can succeed on the file until the opening process closes the file.
file_io::shared: Open the file regardless of how many other processes currently have the file opened. However, if the other process has the file opened exclusively, the open with sharing will fail. Also, if a file is opened for sharing, then it can't also be opened exclusively.

The flag set may contain both reading and writing; if neither are given, reading is assumed. The flag set may contain both create and exists; if neither are given, exists is assumed. The flag set may contain either exclusive or shared, but not both; if neither is given, shared is assumed.

After the open system call is completed, CPU register 0 contains the system call status:

status::ok: The command completed successfully.
device::device_busy: The open request failed. The failure could be for any reason, not just because the file was busy.
device::bad_device: The value in CPU register 1 is not device::disk device::terminal, or device::file.

If the open system call completed successfully, CPU register 1 contains a file identifier, which must be included as an argument to other system calls related to this file. If the open system call didn't complete successfully, the contents of CPU register 1 is undefined.

close system call (system_call::close)

The currently executing process is closing its connection to the file associated with the file id passed in CPU register 1. The status code for the close system call is passed back to the user process in CPU register 0.

After the close system call is completed, CPU register 0 contains the system call status:

status::ok: The command completed successfully.
status::bad_device: The file id in CPU register 1 is not associated with any file.

If the close system command completes successfully, the file id held by the user process becomes invalid and may not usefully be used in any other file-oriented system call.

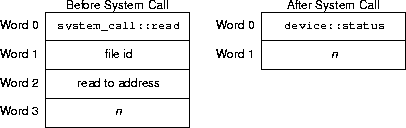

read system call (system_call::read)

Read data from the file associated with file id given in CPU register 1. The data are read from the file starting at the word referenced by the file pointer; the data are written to Primary Store starting at the address given in CPU register 2. After the read, the file pointer references the word immediately following the last word read to the file, or to the end of file. The contents of CPU register 3 is the number of words to read from the file.

After the read system call is completed, CPU register 0 contains system call status:

status::ok: The command completed successfully.
status::bad_device: The file id in CPU register 1 is not associated with any file, or the file doesn't allow reading.
status::bad_address: The Primary Store address in CPU register 2 is bad.
status::bad_count: The contents of CPU register 3 is bad.

If the read system command completes successfully, CPU register 1 contains the number of words read. The number of words actually read may be smaller (never larger) than the number of words requested if the number of words from the file pointer to the end of the file is less than the requested number of words to read.

write system call (system_call::write)

Write data to the file associated with file id given in CPU register 1. The data are written to the file starting at the word referenced by the file pointer; the data are read from Primary Store starting at the address given in CPU register 2. After the write, the file pointer references the word immediately following the last word written to the file, or to the end of file. The contents of CPU register 3 is the number of words to write to the file.

After the write system call is completed, CPU register 0 contains the system call status:

status::ok: The command completed successfully.
status::bad_device: The file id in CPU register 1 is not associated with any file, or the file doesn't allow writing.
status::bad_address: The Primary Store address in CPU register 2 is bad.
status::bad_count: The contents of CPU register 3 is bad.

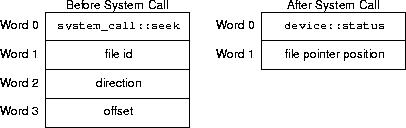

seek system call (system_call::seek)

Move the file pointer associated with file id given in CPU register 1. The file pointer is offset by the number of words given in register 3; this number may be positive or negative (or zero). The location from which the offset is determined is given by the contents of register 2, which contains one of the three characters 'c', 'b', or 'e':

'c': Offset from the current file pointer location. If the file pointer is pointing at word p in a file, and register 3 contains i, then the file pointer will be pointing at the word p + i after the seek call is done.
'b': Offset from the beginning of the file. If register 3 contains i, then the file pointer will be pointing at the word i after the seek call is done.
'e': Offset from the end of the file. If the file contains n words and register 3 contains i, then the file pointer will be pointing at the word n - i - 2 after the seek call is done.

It is not an error to attempt to move the file pointer past either end of a file; in such cases, the file pointer moves as far as it can and stops.

After the write system call is completed, CPU register 0 contains the system call status:

status::ok: The command completed successfully.
status::bad_device: The file id in CPU register 1 is not associated with a file.
status::bad_address: The direction given in CPU register 2 is not one of the characters 'c', 'b', or 'e'.

remove system call (system_call::remove)

Remove (or delete) a file. Register 1 contains an integer file tag identifying the file to remove.

After the write system call is completed, CPU register 0 contains the system call status:

status::ok: The command completed successfully.
status::bad_device: The file tag in register 1 does not correspond to a file on disk.

A file that's opened can be removed; the remove should be delayed until all opens on the file are closed. A file that's undergoing delayed deletion can be opened by other processes.

This page last modified on 24 November 2001.
