Operating Systems Lecture Notes

6 February 2012 • Threads

---

Outline

• Threads and the thread abstraction.
• Threads and processes.
• Thread resources.
• Thread management.
• The Thread-Process Split.

Executing Programs

• A program

  int find(a, x)
    i = 0
    while i < a.length
      if a[i] == x, return 0
      i++
    return i


• in execution is a sequence of instructions.

  i = 0 ; i < a.length ; a[i] == x ; ...


Threads

• A thread is responsible for executing a program statement sequence.
• A thread
  • is an OS resource.
  • is an abstract or virtual CPU.
  • multiplexes the CPU.
• A thread is a sequence of executed statements from a program.

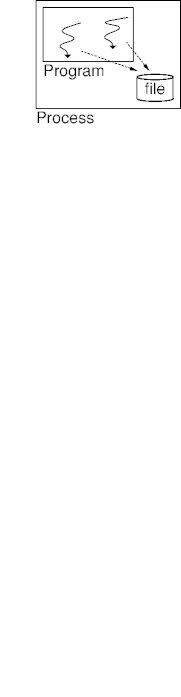

The Thread Abstraction

• A computation has active and passive parts.
• A process is a resource set; it’s passive.

  A thread is the active part of a computation. A computation is one or more threads in a process. At least one thread, the main() thread.

Threads and Processes

• A thead executes, a process doesn’t. Why the split?
• A thread is a handy abstraction of the CPU.
  • Decouple actual and the conceptual processing power.
• A process is an expensive, complex, inflexible abstraction.
• But, in some (threadless) OS abstractions, processes execute too.

Thread Resources

• What resources does a thread need to execute?
  • The CPU.
• What else?
  • Execution state: program counter, registers, run-time stack.
  • Process information: the host process, other threads in the host process.

Thread Descriptors

• Thread resources are stored in a thread descriptor.
  • Similar to a process descriptor.
• Each thread gets its own thread descriptor.
  • Thread resources aren’t usually shared among threads.
• Thread descriptors are stored in the computation’s process.
  • Similar to a process table.

Process Resources

• A thread executing in a process has access to the process’s resources.
  • The resources are shared among all threads executing in the process.
  • Raising the specter of contentious access to shared resources.
• A thread usually doesn’t have access to another thread’s resources.

Sharing Example

	Shared resources are usually declared as global variables in the program.
	buffer b p() {... b.put() ...} c() {... b.get() ...} main {... fork(p) fork(c) ...}

Thread Management

• Thread management consists of
  • Creating and deleting threads.
  • Managing thread resources and descriptors.
  • Coordinating thread access to shared resources.
  • Moving threads into and out of the CPU.
    • This is mainly the scheduler’s job.

Thread Create and Delete

• Traditionally called fork (or spawn) and join.

  int pthread_create(
    thread id,         out to caller
    thread attributes, stack, priority, ...
    thread function,   statements
    thread arguments)  to the function

  void pthread_exit(result)

  int pthread_join(
    thread id,
    result)

• See the code.

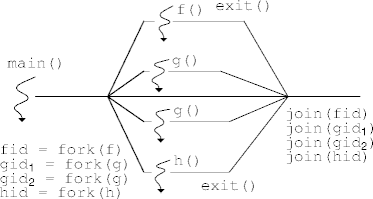

Fork-Join Example

Java Threads

• Java threads have two parts:
  • The Runnable interface gives the code.
  • The Thread class executes the Runnable code.

  class P implements Runnable { ... }
  class C implements Runnable { ... }
  Main() {
    Queue q = new Queue()
    Thread p = new Thread(new P(q))
    Thread c = new Thread(new C(q))
    p.run() ; c.run()
    p.join() ; c.join() }


• See the code.

The Thread-Process Split

• Managing processes is much harder than managing threads.
  • The complexity of the data involved.
  • The complexity of the operations involved.
  • The amount of state to wrangle.
• Avoid managing process in favor of threads.
  • The origin of heavyweight vs. lightweight processes.

Some Data

• Repeatedly fork threads and processes that do nothing but return.

  	avg, std dev
  		threads		processes
  n = 100		123, 158		1730, 180
  n = 1000		77, 41		1590, 321

• Times in \(\mu\)secs.
• The average of n runs.
• Unoptimized complilation with g++ v. 3.4.6.
• Execution on rockhopper.
• See the code.

Summary

• Threads abstract (or virtualize, or multiplex) the CPU.
  • And represent statement sequence executions from a program.
• All threads share a host process's resources.
  • And each thread has unsharable resources of its own.
• Threads vs processes: performance vs protection.

References

• Why Threads Are A Bad Idea (for most purposes) by John Ousterhout, Usenix Annual Technical Conference, January 1996.
• SEDA: An Architecture for Well-Conditioned, Scalable Internet Services by Matt Welsh, David Culler, and Eric Brewer, Eighteenth Annual Symposium on Operating System Principles, 2001.
• Why Events Are A Bad Idea (for high-concurrency servers) by Rob von Behren, Jeremy Condit and Eric Brewer, 9th Workshop on Hot Topics in Operating Systems, May, 2003.

---

This page last modified on 2012 February 6.
