Data Structures & Algorithms Lecture Notes

Outline

a dynamic-array pathology

Frequently crossing the same resize point causes highly inefficient execution.
- Queues suffer from this problem too.

Rather than reacting immediately to a resize point, delay until sure.
- Delay is asymetric: expansion can't be delayed.
Define a low-water mark below the resize point.
- Delay contraction while the ADT size is above the low-water mark.

a delayed dynamic array

Delay can be specfied as a percentage (p% below the resize point) or absolutely (a elements below the resize point).
The client can set the delay, or the ADT can, or they both can.
- Clients know more about their application, but get things wrong and may not recognize the problem.
- The ADT is always aware of the problem, but may not know the best way to solve it.

void addAfter(T v)
  Link l = findBefore(v)
  Link n = new Link()
  n.value = v
  n.next = l.next
  l.next = n

adding a new link

void remove(T v)
  Link l = findBefore(v)
  l.next = l.next.next

removing a value

Boxed code creates nodes and garbage (unreferenced instances).

Creating new nodes and collecting garbage is expensive.
- Although dynamic-storage managers have gotten good at their job.
Large linked lists with much turnover may have unacceptable performance due to storage management.
What can be done to reduce storage-management costs?

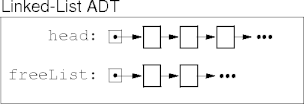

The usual solution to garbage problems is recycling.
- Move unlinked nodes to a free list; they're not garbage any more.
- Check the free list before allocating new nodes.

private Link newLink()
  if freeList != null
    Link l = freeList
    freeList = l.next
    return l
  return new Link()

adding a new link

public void remove(T v)
  Link n = findAfter(v)
  Link l = n.next
  n.next = l.next
  l.next = freeList
  freeList = l

removing a value

Generate 100,000 pairs of adds followed by removes.
- Add runs are (rand(10) + 1)*10 long.
- Remove runs are rand(ll.size()) + 1 long.
Java 1.6.17 on an elderly single-core laptop.
- No compiler or JVM command-line options.
Free-list manged code runs 1.8 to 2 times faster than new + garbage-collected code.
- Ten-run average: 1.9, 0.02 std dev.
See the the code; see an example run.

If linked-list size is bimodal (large and small), the free list may have too many unused links.
- This is a similar to large mostly empty arrays, and handled in the same way.
- Use a low-water mark to avoid free-list thrashing.
If free-list links continue to reference values, they may obstruct value garbage collection.
- Null out the value field(s) when hanging a link on the free list.

Using a dynamic array gives dynamic linked lists.
But dynamic arrays won't do anything about slow add and removes.
- Values in the array still have to be moved around.
How can dynamic arrays be used to provide fast adding and removing?

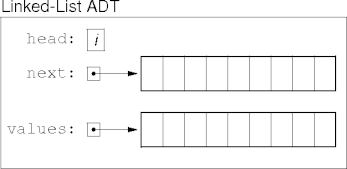

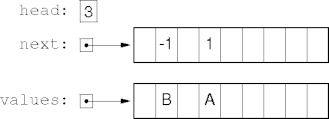

array linked lists with explicit next

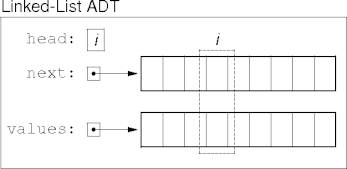

array linked lists with explicit next

class Link<T> {
  T value;    // values[i]
  Link next;  // next[i]
  }

Expensive operations should not be performed frequently.
- Make them less expensive or less frequent if they are.
Spread an operation's cost over as many payers as possible.
- Recycle your garbage.
Explicit adjacency relations allow fast value manipulations, even in arrays.
