Object-Oriented Programming with Java Lecture Notes

26 February 2008 • Interfaces

Outline

• Abstract classes and interfaces.

  • Traits

• Copying and cloning.

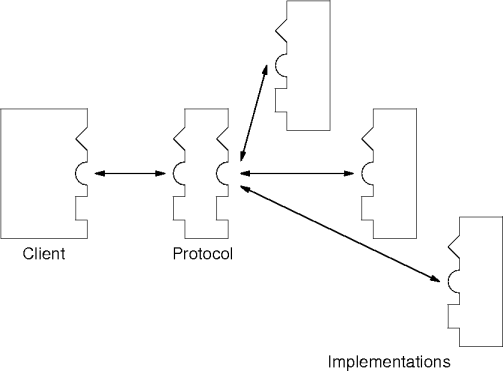

Polymorphism

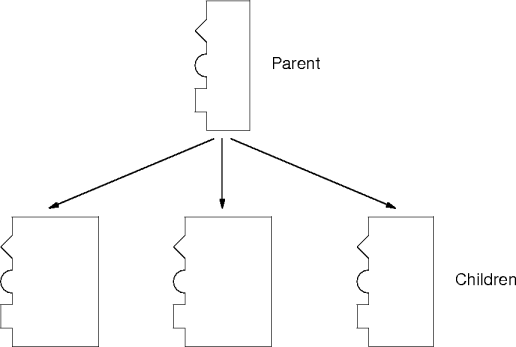

Inheritance

Problems

• Inheritance and protocol classes are overly heavy mechanisms for implementing IS-A relations.

  • “Too much mechanism” means “complexity.”

• Simpler inheritance would be nice, but is technically difficult.

• Simpler protocol classes is a more straightforward, practical solution.

  • Not straightforward enough, though.

Abstract Classes

• The abstract keyword identifies features intended for protocol definition.

  • Abstract methods don't have implementations.

  • Abstract classes don't get instantiated.

• But, a child can have only one parent.

Interfaces

• An interface is a simpler form of abstract class.

  • Abstract methods only, no defined methods.

  • All methods are non-static and public.

  • All variables are public, static, and final.

• An interface can also contain classes and other interfaces.

Interface Examples

interface Candy {
  public abstract int calorieCount();
  Nuts [] containsNuts();
  boolean hasFlavonoids();
  }

interface 3DRectangle {
  double height();
  double width();
  double length();
  }

Interface Specifications

• Interfaces can be package-local (default) or public.

• Interfaces can extend other interfaces.

  interface ChocolateBar
  extends Candy {
    ChocolateKind chocolateKind();
    // and so on.
    }


  • Interfaces can combine other interfaces too.

    public interface ChocolateBar
    extends Candy, 3DRectangle { ... }


Interfaces and Classes

• A class implements one or more interfaces.

  class ThreeMusketeers
  implements ChocolateBar
    int calorieCount() { ... }
    boolean hasFlavonoids { return true; }
    // and so on


  • A class may implement interfaces and extend a class.

• A class not implementing an interface method becomes abstract.

Constant-Defining Interfaces

• Constant-defining interfaces are frowned upon.

  interface Universals {
    public static final int
      tearsCried = 96,
      theAnswer = 42;
      }

• Use one-off classes instead.

  class Universals {
    private Universals() { }
    public static final int
      tearsCried = 96,
      theAnswer = 42;
      }

Trait-Defining Interfaces

• Use interfaces to define traits: small, well-defined collections of behavior.

  interface Comparable
    int compareTo(Object o);

  public interface Destroyable
    void destroy();
    boolean isDestroyed();

  public interface Readable
    int read(CharBuffer cb);


Trait Behaviors

• Mix and match traits to give desired behaviors to classes.

  class Card
  implements Comparable
    int compareTo(Object o) { ... }
    // and so on.

  class SecurityCertificate
  implements Destroyable, Readable
    void destroy() { ... }
    boolean isDestroyed() { ... }
    int read(CharBuffer cb) { ... }
    // and so on.


Trait Specifications

• Use traits to specify exactly and minimally what behavior class instances should have.

  boolean beats(Comparable x) { ... }
  void validate(Destroyable tag) { ... }
  Message read(Readable input) { ... }


• The same class instance may have several roles based on traits.

  SecurityCertificate ticket =
    new SecurityCertificate()
  validate(ticket)
  Message m = read(ticket)

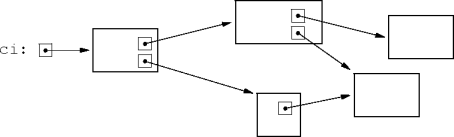

Graphs

• Class instances are graphs.



  • A node is a class instance.

  • An edge is a reference in an instance variable.

• This structure has important consequences.

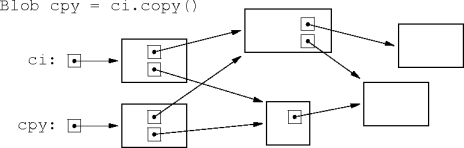

Copying Class Instances

• Class instances a graphs complicates copying.

• The obvious copy implementation may not do the job.

  T copy()
    cpy = new T()
    for each v: this.instance-variable
      cpy.v = v
    return cpy


Shallow Copies

• The obvious copy() implements a shallow copy.



  • Only the top-level instance is recreated.

  • The rest of the instance references are copied.

• So?

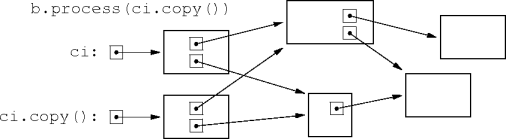

Why Copy?

• An important reason to copy is to protect a class instance from unexpected changes.

  • A source of nasty errors.

• A shallow copy doesn't protect against unexpected changes.



Deep Copies

• Protection against unexpected changes requires a deep copy.

  • Instance-variable references are recursively copied.

  T deepCopy()
    cpy = new T()
    for each v: this.instance-variable
      cpy.v = v.deepCopy()
    return cpy

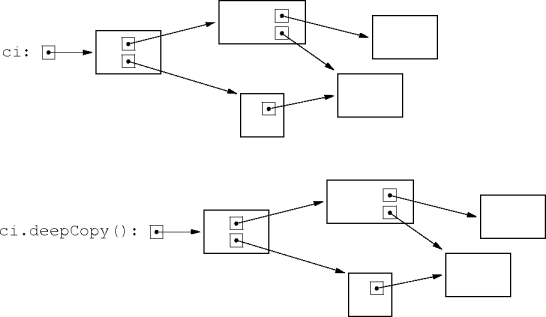

Deep-Copy Example

• Blob cpy = ci.deepCopy()



Object.clone()

• The Object method

  protected Object clone()


  implements copying.

  • It's another one of those subclass-responsibility Object methods.

• However, by default it's inaccessible to ancestors and their clients.

No-Clone Example

$ cat t.java
class blob { }

class t {
  public static void main(String args[]) {
    blob b = new blob();
    blob cpy = (blob) b.clone();
    }
  }

$ javac -Xlint t.java
t.java:7: clone() has protected access
          in java.lang.Object
    blob cpy = (blob) b.clone();
                       ^
1 error

$

Default Clone

• Object.clone() implements a shallow copy.

• If that's acceptable, an ancestor must

  • implement the Cloneable interface,

  • redeclare clone() as a public method, and

  • deal with the clone-unsupported exception.

• The Cloneable interface is a hack, not to be emulated.

Shallow-Clone Example

$ cat t.java
class blob
implements Cloneable
  public blob clone()
  throws CloneNotSupportedException
    return (blob) super.clone();

class t
  public static void main(String args[])
    blob b = new blob();
    try blob cpy = b.clone();
    catch (Exception e) { }

$ javac -Xlint t.java

$

Deep-Copying Clones

• If a class needs a deep-copying clone, it

  • Overrides Object.clone() as in a shallow copy, and

  • implements the deep copy in the local clone().

• Writing a deep-copy clone is tricky.

  • All constituent classes have to provide a deep-copy clone() too.

Summary

• Interfaces are lightweight abstract classes.

• Favor interface types over abstract-class types.

  • Use interfaces to define traits.

• Determine copying behavior if any and override Object.clone() appropriately.

  • Think hard about implementing deep copying.
