Advanced Programming I Lecture Notes

15 March 2007 • N -Way Trees

Outline

• External Storage

• Node-Page Mapping

• B-Trees

  • Searching B Trees

  • B-Tree Insertions

  • B-Tree Deletions

• B-Tree Variations

Tree Data Storage

• Balanced trees are a good way to store data.

  • Lots of data is kept close to hand.

  • “Close to hand” means “within O(log n) access.”

• What happens with lots and lots of data?

  • More data than can fit into primary store?

• How do trees and external storage mix?

  • The answer? Databases.

External Storage

• External storage is larger, slower, and cheaper than primary storage.

  • By orders of magnitude.

• Individual external storage devices are idiosyncratic.

  • For any interpretation of “individual.”

• Successful tree-based external-storage algorithms are complex, custom-build, and fragile.

Assumptions

• A generic disk represents external storage.

  • A disk is an array of pages.

• Minimal time is an essential characteristic.

  • That means minimal disk accesses.

  • Practically anything can be traded-off against disk accesses.

• The trees should be balanced for good access.

Trees and Disks

• How to map a half-billion node binary search tree to disk?

• Try the obvious: one node per disk page.

  • Pointers turn into disk-page indices.

• This works, but not too well.

  • Each disk page is almost empty.

  • Too many disk accesses.

    • Potentially 29 for a half-billion nodes.

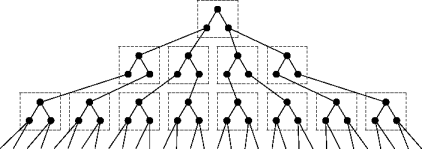

Node-Page Mapping

• Store many nodes per page.



• This turns the binary tree into an n-way tree.

  • Reducing the height of the tree.

  • log₁₂₈ 2²⁹ ≈ 5.

Page Nodes

• Grouping binary-tree nodes in a page is inefficient.

• Treat each page node as an alternating sequence of child links and keys.



• N is the page node's order.

  • A binary tree has order 1 nodes.

Searching Page Nodes

• The binary search tree property extends to page nodes.



  • The values in child C_i are at most K_i.

  • The values in child C_{i + 1} are at least K_i.

Balance

• Good access performance also requires balanced trees.

• Rotation-based balance is too expensive.

  • Too many pages are involved.

  • Multi-key rotations are complex.

• Different balancing schemes give rise to different disk-based trees.

B-Trees

• An order n B-tree is a page-node tree such that

  • Every node has at most n keys.

  • Almost every node at least n/2 keys.

    • The root may have fewer keys.

  • All leaf nodes appear at the same level.

• B-Trees were developed by Bayer and McCreight in 1972.

Example B-Tree

• An example order-4 B-tree.

Searching B Trees

• If key k equals k_i for some node, stop.

• Otherwise find k_{i - 1} < k < k_i and check out the node at C_i.

  • The node search can be linear or a binary search for large order B trees.

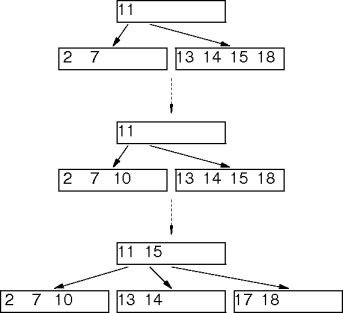

B-Tree Insertions

• Insert 10 and then 17.



Inserting into B Trees

• Find the apropriate leaf node.

• If the leaf has less than n keys, add the new key.

• If the leaf is full,

  • Add a new leaf to the tree.

  • Move half the keys from the full leaf to the new leaf.

  • Insert the median key from the old and new leaves into their parent.

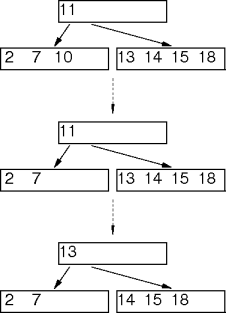

B-Tree Deletions

• Delete 10, then 11.

  Leaf-node deletions are easy. Interior-node deletions follow the binary-tree pattern.

Deleting in Minimal Nodes

• The minimum-key property complicates deletions.



• The solution is to

  • shift keys from well-endowed neighbors, or

  • merge two impoverished pages into one.

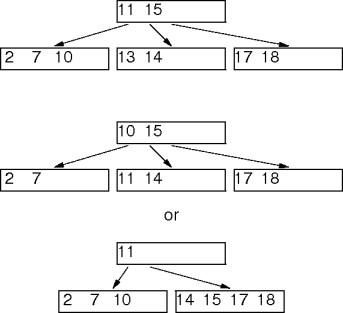

Deleting Examples

• Delete 13 from



B-Tree Variations

• There are lots of B-tree variations to exploit important but niche system characteristics.

• The B+ tree is a general-purpose extension of B trees.

  • All data are in the leaves.

    • Internal nodes contain copies of leaf keys.

  • The leaves form a doubly-linked list.

• B* trees are an earlier variant of B+ trees.

Primary-Store B Trees

• B-tree concepts can be usefully applied to trees in primary store too.

  • Exploit that nice, simple balancing behavior.

  • The order-2 B tree (a.k.a the binary tree).

• Consider order-3 B trees.

  • Each node can contain one or two keys.

    • And have zero, two or three children.

  • These trees are known as 2-3 trees.

2-3 Tree Nodes

• A 2-3 tree node can have one or two keys.



• 2-3 tree nodes can be implemented with binary-tree nodes.



  • An extra bit marks the horizontal edge.

2-3-4 Trees

• A 2-3-4 tree is an order-4 B tree.

  • Each node has two, three, or four keys.

  • 2-3-4 tree nodes can be simulated by binary tree nodes.

• 2-3-4 Trees are strongly related to red-black trees.

  • The red edges in red-black trees correspond to the horizontal edges in binary implementation of 2-3-4 trees.

Points to Remember

• Adding external storage always changes things.

• Grouping nodes into pages leads to B trees.

• Almost all databases are based on B+ trees.

  • File systems tool

• Primary-store B trees are interesting too.

  • But not that important, relatively.

References

• Multiway Trees by Donald Knuth, Section 6.4.2 of The Art of Computer Programming, Vol. 3: Sorting and Searching, Addison Wesley, 1973.

• The Ubiquitous B-Tree by Doug Comer, ACM Computing Surveys, June, 1979.

• B Trees by Donghui Zhang in Handbook of Data Structures and Applications, Dinesh Metha and Sartaj Sahni editors, Chapman & Hall/CRC, 2005.
