Advanced Programming I Lecture Notes

14 March 2006 • Balancing Trees

Outline

A Question

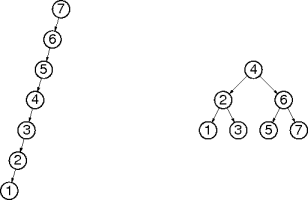

• Here are two binary search trees containing the same data.



  Why are they different?

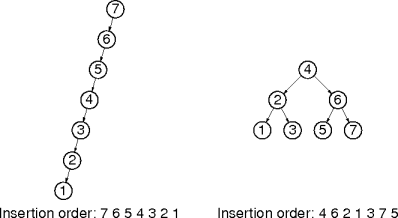

Data Insertion Order

• Data-insertion order determines a tree's shape.



• Tree shape influences tree operation performance.

Tree Levels

• Given a tree T, a node n is at level i in T if n is i edges away from the root.



• The ith level of T is the nonempty set of all nodes at level i in T.

• The height h (or depth d) of T is the largest level h in T.

Tree Shape

• Tree operations have good performance when each decision throws away half the data.

• This occurs when each subtree has half the data.

• A balanced tree has this property.

• A tree T is balanced if the two child subtrees of any node in T differ in height by at most 1.

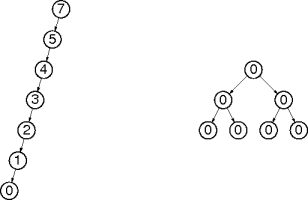

Example Tree Shapes

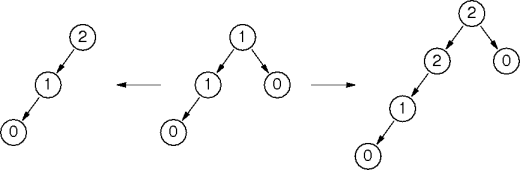

• Each node stores the difference in its children's heights.

  • The sign indicates the larger subtree, the magnitude by how much.



Getting Well-Shaped Trees

• Several techniques produce well-shaped trees:

  • Shuffle the data before inserting it.

    • May not be practical or always applicable.

  • Ocassionally reconstruct a balanced tree.

    • Effective but possibly expensive.

  • Rebalance the tree after every operation.

    • Effective, moderately expensive, complicates operations.

Rebalancing Trees

• A balanced tree can be unbalanced by at most 1.



• The rotation is the basic rebalancing operation

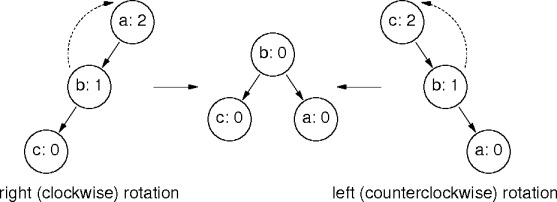

Node Rotations

• A node rotation lifts nodes up in the tree.

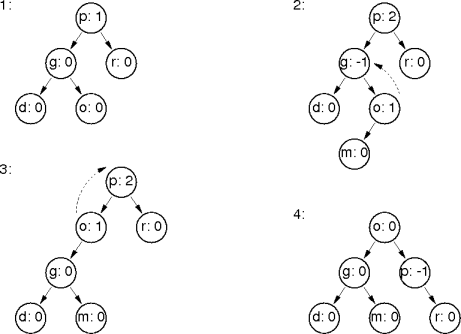

Example Rebalancing

AVL Trees

• The AVL tree is a binary search tree that's always in balance.

  • Developed in 1962 by Georgii Adelson-Velsky and Yevheniy Landis.

• Each unbalancing insertion or deletion restores balance as part of its operation.

• Not so popular these days.

  • More efficient and simpler alternatives are available.

AVL Rotations

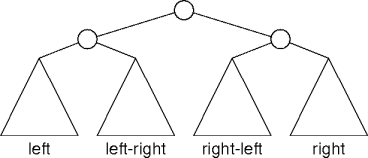

• AVL trees require four kinds of rotations.



• The left-right and right-left rotations are double rotations.

  • They each have three cases.

AVL Balance

• At most one (possibly double) rotation is enough to restore balance after an insertion.

• Restoring balance after a deletion may require O(log n) rotations.

• Search is always O(log n).

Almost-Balanced Trees

• Constantly maintaining balance can be expensive.

  • Particularly if insertions and deletions outnumber searches.

• Let the tree drift out of balance, and fix it up when it gets too out-of-balance.

  • Most operations are now cheaper.

  • Some operations are more expensive.

    • However, they're still O(log n).

Red-Black Trees

• The red-black tree is an example of an almost-balanced tree.

  • Developed in 1972 by Rudolf Bayer.

• A red-black tree is a binary search tree.

  • The edges of the tree are either red or black.

• Red-black trees implement the STL sorted-associative containers.

The Red-Black Property

• The red-black property generalizes the notion of height.

  1. Every path from root to leaf has the same number of black edges.

     • All paths are roughly in balance.

  2. No path contains two consecutive red edges.

     • Paths do not drift too far out of balance.

     • "Too far" in this case means "at most ×2".

Example Red-Black Tree

Inserting into the left sub-tree requires rotations. There are (potentially) two rotation-free insertions into the right subtree.

Maintaining Almost Balance

• Insertion and deletion operations have to maintain the red-black propery.

  • They rely on AVL-tree rotations and edge color-flipping.

• The no consecutive red-edges property requires keeping track of more information.

  • Parents and grandparents.

  • Rotations cover larger portions of the tree.

  • There are more cases to implement.

Abandoning Balance

• Data access is frequently unbalanced.

  • A book chapter on Italy contains a lot of "Rome" but little of "Paris".

  • Seniors register for classes two days before juniors do.

• Balance is unhelpful when data accesses are skewed.

  • Improve performance by recognizing and exploiting unbalanced access.

Caching

• Caching exploits unbalanced access.

• A cache is a high-performance database.

  • Both search and access are fast.

  • Caches are also usually expensive and small.

• Skewed accesses should be satisfied out of the cache.

  • Other accesses go to the main data set (a cache miss).

A List Cache

• Searching a linked list has linear cost.

  • Ordering doesn't change that.

• When an element is accessed, move it to the list head.

• The list head is the cache.

  • Skewed accesses are satisfied within a few elements.

  • The cache adjusts to changes in access skew.

Caching Tree Accesses

• Tree accesses can be cached by moving data to the root.

• But unordered trees are just expensive lists.

  • Worst case behavior rises from O(log n) to O(n).

  • Extra space and complexity overhead.

Splay Trees

• A splay tree is a caching binary search tree.

  • Developed by Daniel Sleator and Robert Tarjan in 1985.

• Splay-tree operations provide amortized O(log n) operations.

  • Maintaining search-tree order has its price.

Splaying

• Move-to-the-root is done by splaying operations.

  • Each operation also applys splays to the element accessed.

• A splaying operation is a sequence of rotations.

  • Each rotation moves a node up the tree.
