Operating Systems Lecture Notes

2014 November 20 • Files

---

Outline

• Files, content and access.
• File implementation.
• Metadata

Files

• A file is a sequence of items.
  • What kind of sequence?
  • What kind of items?
• Files are named, external, independent, persistent, and potentially gargantuan.
  • External: files exist outside a process’s resource space.
  • Independent: lifetime independent of associated processes’ life times.

File Attributes

• A file can have associated with it any of the following:

  Name, a human-manageable tag.
  Identifier, a system-manageable tag.
  Type, of the file, or its contents.
  Location among and within devices.
  Size in some units.
  Protection authorization and operation.
  Other information, including owner, various times and dates.

File Operations

• As an abstract data type, a file supports the operations

  create(), create a file.
  delete(), delete a file.
  read(), read items from a file.
  write() write items to a file.
  rewind() position within a file.
  open() connect to a file.
  close() disconnect from a file.
  fctl(), manipulate file attributes.

File Position

• File reading and writing are done relative to a particular item in the file.



• The file position implies the read and write point.

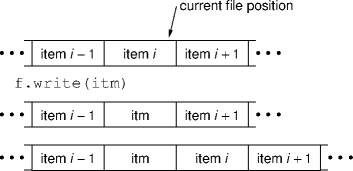

Item Writing

• Writing items into a file raises another question.



  • Insert or overwrite?

File Items

• At base, a file is a sequence of 2ⁱ bytes for small i.
  • In Unix, i = 0.
• Bytes can be grouped into larger structures called records.
  • Fixed-length records are all the same in a file.
  • Variable-length records may vary in structure within a file.

Implementing Items

• Most operating systems implement byte-item files.
  • Applications can turn byte-item files into more structured files.
  • Databases, spread-sheets, HTML-XML files.
• Most operating systems also support record-based files in some form.
  • Usually specialized, such as directories in Linux.
  • Occasionally available as a service.

File Sequences

• The file sequence is indexed and variable length.
• Indexes are array-like, although occasionally content based.
  • Usually only for record-based files.
• Sequence length changes easiest at the end (largest index).
  • Size changes at other sequence locations are possible but expensive.

File Access

• Access patterns characterize the way items in a file are read or written.
• Sequential access: item by item in one direction.
• Direct (or random or indexed) access: jumping from item to item.
• Reliable access pattern preditions can be exploited to improve efficiency.

Files On Disk

• Many file properties (size, persistence) come from being implemented on disk.
• The file-disk mapping (file allocation) is similar to the process-virtual-store mapping.
  • Although the trade-offs are worked differently in each case.
• Efficiency is primary influence in resolving trade-offs.
  • Efficient file use, as well as efficient disk use.

Allocation Structure

• File items are grouped into a file block.
  • An item sequence is turned into a file-block sequence.
• A file block is a small multiple of the disk-block size.
  • 2ⁱK-bytes, 0 ≤ i ≤ 4.
  • Whatever treats the disk most kindly.
• The juncture between adjacent file blocks can get awkward for record-based files.

File Blocks

• File blocks encourage efficient disk use.
  • Amortize expensive disk operations over more data.
  • Caches are lurking around someplace.
• But file blocks may waste disk space.



  • This is internal fragmentation.

Contiguous Allocation

• Contiguous allocation is the simplest file-allocation policy.
• The whole file-block sequence is plopped into an available contiguous disk-block sequence.



Contiguous Analysis

• Contiguously allocated files are not cheaply dynamic.
  • Shrinking is easy but wasteful.
  • Growing is limited and expensive.
• Good allocation requires maximum size declarations.
  • Wasting space no matter how accurate the declarations.
• Over time, external fragmentation eats into allocatable space.

Linked-List Allocation

• Linked-list allocation is the antipodes to contiguous allocation.
• Allocate the file as a linked-list of file blocks.



Linked-List Analysis

• Link-allocated files are dynamic at the ends.
• No external fragmentation.
• No arduous maximum-size estimates required.
• On the other hand:
  • File traversal is more complex to implement.
  • File transfer efficiency can easily plummet.

Link Information

• Where are the links in a linked-list allocation?
• They can be part of the file block.



• In-block links introduces a host of irksome special cases.
• File traversal is performance hostile.

External Links

• Separate concerns: use file-blocks for data and other blocks for links.



• File navigation is now buffer friendly.

Big Files

• External links still incur travel costs linear in file size.
• An N-way tree has sub-linear traversal costs.
  • N is usually the file- (or disk-) block size divided by pointer size (4 to 8 bytes).
  • Moving sequentially from file-block to file-block (leaf to leaf) in a tree is not simple.
• A node points to a file block (a leaf) or another tree node (an indirection block).

Access Trees

• Access trees can be tilted to put file blocks closer to the root on one side.
  • Small files have file blocks one hop away from the root.
  • As the file grows, new file blocks move further down the tree.
  • Three hops away is the usual stopping point.

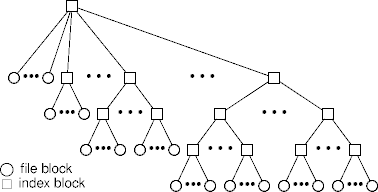

Access Tree Illustrated

B+ Access Trees

• B+ trees are an alternative access tree.
• All pages are the same distance away from the root.
  • B+ trees are self balancing to maintain uniform distance.

Hybrid Allocation

• Sequential allocation is inflexible but disk friendly.
• Linked-list allocation is flexible but disk hostile.
• How to combine sequential efficiency with linked-list flexibility?
• Allocate file-block runs for efficiency and link them for flexibility.
• Extent-based allocation.

Metadata

• External link blocks are an example of file metadata: data about files.
  • Link blocks are the first of many instances of file metadata.
• Metadata is packed along with the file, but usually not in the file.
• Metadata is a good place to keep statistics about file use to support adaptive performance adjustments.

File Protection

• File protection information is common metadata.
• Basic protections are read-only, write-only and execute-only.
  • Execute-only implies read-only, most times.
• There are elaborate variations on the basic protections.
  • But these require more metadata and higher-level structures.

Summary

• Files are persistent, large item sequences.
• Tree-based extent file implementations strike a balance between flexible file manipulation and efficient disk use.
• Metadata is data about files.

---
