Computer Networking Lecture Notes

2014 September 29 • Transport Congestion & Flow Control

Outline

Transport behavior.
Flow control.
- Stop-and-wait to sliding window.
- TCP flow control.
- Rate-based flow control.
Congestion control.
- Prevention, detection, and mitigation.

Set Up

A wants to send a DVD (4.7 Gb) to B.

Easy peasy:

A does:

B does:

f = open("big.dvd")
c = connect("to B")
c.write(f.read())
c.close()
f.close()

f = open("big.dvd")
c = connect("from A")
f.write(c.read())
c.close()
f.close()

What does the rest of the system do?

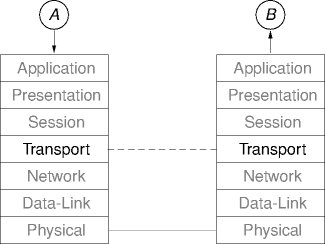

Transport Behavior

a transport connection

How About This?

Sender does:

Receiver does:

packets = from-session()for i = 0 to n - 1
  write(packet[i])

i = 0
while not eof()
  packets[i++] = read()
to-session(packets)

This is the packet firehose.
Problem solved?

Objectives

The transport layer should handle packets so that
- The service it implements has the expected characteristics (reliability).
- The receiving end can handle data efficiently and effectively.
- The generated traffic doesn’t abuse the network.
Mission accomplished?

The Packet Fire Hose

Blasting packets from the sender at full host speed fails on all counts.
- Packet transport is unreliable.
- The receiver can get swamped with data.
- The network (a shared resource) probably can’t handle too much blasting behavior.
  - And if it can, the results are likely to be ugly.
Let’s rethink.

Problems

Appropriate packet handling separates into three problems:
1. The flow-control problem: treating the receiver kindly.
2. The congestion-control problem: treating the network kindly.
3. Reliability in the presence of best-effort service (IP service).
All three problems are mixed together.

Flow Control

The flow-control problem: manage the packet stream so that
- The receiver gets data as fast as possible, but no faster.
- The network handles packets with as little loss as possible.
- Both are run just this side of their upper limits.
Reliability is folded into packet handling too.

Stop-And-Wait Flow Control

stop-and-wait flow control

At the other extreme, send a packet and wait for an acknowledgment.

This is called stop-and-wait flow control.

Stop-and-Wait Reliability

stop-and-wait retransmissions

The sender times out on acks and retransmits.

RTO: round-trip time-out.

Time-Out Values

Time-out values combine mean round-trip time and variation (quasi-variance):
RTT_i = αRTT_{i - 1} + (1 - α)T_i
VAR_i = βVAR_{i - 1} + (1 - β)(RTT_i - T_i)
RTO_i = RTT_i + 4VAR_i
T_i = measured pkt-ack time
α = 0.75
β = 7/8

Stop-and-Wait Performance

How well does stop-and-wait perform?
If the network or the receiver are overwhelmed, then there’s no hope.
Round-trip time (rtt) bounds performance.
- Effective bandwidth = packet size/rtt
- Packet sizes are small relative to network bandwidth.
- Round-trip times are large.
How can performance be improved?

Improving Performance

Send two packets without acknowledgment.
- And expect two acks in return.
This effectively doubles the segment size from one to two packets.
- But the rtt increases too.
Better: allow two outstanding acks.
- Send out a packet immediately after receiving an ack.
Are the network and receiver stressed?

Turning the Crank

If doubling segment size improves performance, how about tripling it?
- How about making it n times bigger?
Increase n until either the network or the receiver gasps.
- n is a knob for tuning performance.
- It’s negotiated by sender and receiver at connection set-up.
  - And can be adjusted during transmission.

Sliding-Window Flow Control

The result is known as sliding-window flow control.
n is the flow-control window size.

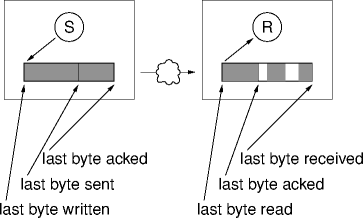

TCP Sliding Window

TCP sliding windows

Segment Loss

segment loss, timeouts and retransmissions

The sender times out on acks and retransmits.

RTO: round-trip time-out.

Segment Duplication

segment loss, timeouts and retransmissions

Receiver buffering handles segment duplication.

RTO: round-trip time-out.

Segment Reording

segment loss, timeouts and retransmissions

Receiver buffering handles segment reordering.

Acknowledgments

Acknowledgments are important, but are expensive.
Acknowledgments can be:
- Negative (NACKs): unreceived packets.
- Cumulative: All packets up to the acknowledged packet received.
- Selective (SACKs): packets received independent of order.
Under varying circumstances, different acks provide better performance.

Ack Performance

In general
- Cumulative provides worst performance.
  - Received out-of-order packets are retransmitted.
- Selective acks provide better performance.
  - Immediate acks avoid unnecessary retransmissions.
- Negative acks provide best performance.
  - Only send acks when needed.

Rate-Based Flow Control

A receiver R can accept an average of k Mbits/sec.
- The receive buffer is neither too full or too empty.
Suppose a sender S can transmit an average of k Mbits/sec to R.
- No further flow control between S and R is needed.
This is the basis for rate-based flow control.
- Similar to media stream transmission.

Congestion Control

Most networks provide congestion control.
- Either at the network’s edge, or in the routers or both.
However, different networks use different congestion-control mechanisms.
- And trying to play nice with in-transit networks is hard.
Transport congestion control reacts network congestion control.
- Back off or push as needed.

TCP Congestion Control

TCP provides congestion control as a service.
- Performance mostly, and efficiency.
TCP makes minimal assumptions about the underlying networks.
- Starting with the lost packet assumption.
- However, handling TCP well is a goal for most networks.
- And TCP favors some network behaviors over others.

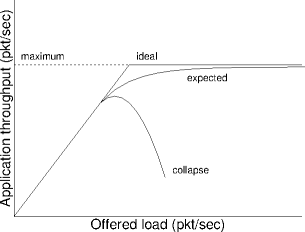

A Congestion Portrait

congested behavior

End-to-End Congestion Control

The sender detects congestion.
- Either by dropped packets or explicitly notification.
The sender throttles sending fewer packets into the connection.
- For the good of the networks.
The sender also tries to push back with more packets.
- For the good of the endpoints.

The Congestion Window

In TCP flow control the sender’s window is constrained by the receiver’s buffer size.
last acked - last sent ≤ receiver buffer size
In congestion control, the sender’s window is also constrained by the congestion window.
last acked - last sent ≤ min(receiver buffer size, congestion window)
Congestion control occurs by manipulating the congestion window size.

Start-Up Window Size

Setting congestion window = receiver buffer size is a hostile act.
- A large influx of packets all at once.
Start the congestion window at one packet, and increase by one for every expected acked received.
- This is an exponential increase.
- But known as slow start.

Slow-Start Example

slow-start example

The congestion window size equals the number of unacked packets.

Thresholding

Exponential growth is unsustainable.
- It quickly causes congestion.
TCP avoids congestion with a thresholding value.
The congestion window size grows by one when it’s larger than the thresholding value.
- This is an additive increase.
The onset of thresholding marks the end of slow start.

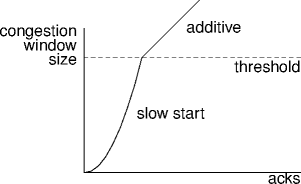

Thresholding Example

slow-start thresholding

Throttling

The sender interprets an ack time-out as evidence for network congestion.
Time to throttle:
- The threshold is reset to half the congestion window size.
- The congestion window size is reset to 1.
- Slow start begins again.

Throttling Example

Summary

Flow control protects slow receivers from fast senders.
- Flow control is an end-to-end property.
Congestion control protects slow networks from fast senders.
- Congestion control isn't an end-to-end property (and there's the rub).
TCP folds congestion control into flow control.
- UDP and IP have no control.

References

Congestion avoidance and control by Van Jacobson in Symposium Proceedings on Communications Architectures and Protocols, 1988.
