Outline

  -  Review

-  Data-link layer and end-point connectivity.

-  Data-link layer services.

    -  Reliability and connectivity.


-  Example data-link layer protocols.


    -  Perfect links.

-  Rate mismatched links.

-  Corrupting links.


Where We Were

The Data-Link Layer

What are Subnets?

  -  Shared (multiaccess, broadcast, random access) channels.



-  Point-to-point channels.



A Little More Detail



-  Separate services provided from implementation.

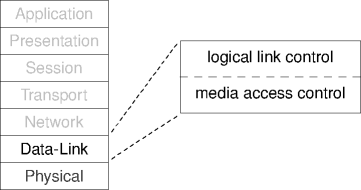

Data-Link Sublayers



-  Logical link control frames data and ensures transmission
  characteristics.


-  Media access control accesses the physical layer appropriately.
Point-to-point: relatively easy.
 Shared: considerably harder.

Data Link Services

  -  Data transmission.

    -  Unacknowledged connectionless service.


-  Acknowledged connectionless service.


-  Acknowledged connection-oriented service.

      -  Multiplex a single channel.



-  Addressing.

Error Control

  -  Reliable data-link transmissions should recognize and handle errors.

    -  It’s more efficient at the data-link layer, but not necessary


-  The usual schemes come into play at the data-link layer:

    -  Acknowledgments provide feedback.

-  Sender time-outs recover from lost acks.

-  Sequence numbers protect against duplicates.


Flow Control

  -  Heterogeneous end-points may have mismatched capabilities.

-  Flow control smooths over end-point differences.

    -  Flow control can be either rate-based or feedback-based.


-  Modern network interface cards (NICs) tend to make flow control a less
  serious problem.

    -  But old or limited end-points.


Addressing

  -  Data-link layer hosts are identified by a MAC address.

    -  Assigned to the interface.


-  A MAC address is 6 bytes (48 bits) in two 3-byte parts.



-  Specified as 12 hex digits.

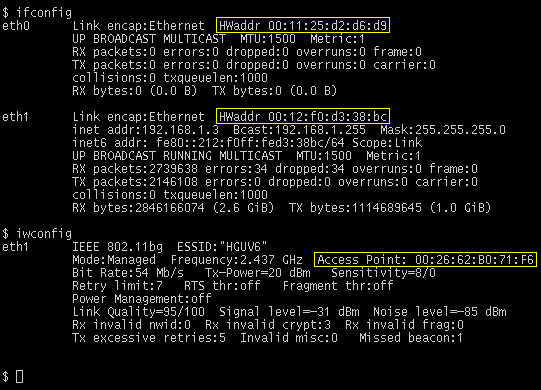

MAC Address Examples



-  00:11:25 — IBM; 00:12:f0 — Intel;
  00:26:62 — Actiontec Electronics.

Basic Data-Link Protocols

  -  Correct communication is easy in the absence of errors.

    -  But there are lots of errors.


-  As usual, “correct” means “accurately reproduced” on the
  receiver side.

    -  Spatial correctness; temporal correctness is another matter.


-  The data-link layer is the first (or last) place these matters can
  dealt with concretely.

Perfect Links

  -  Assume perfect links, links that

    -  are errorless, and

-  have rate-matched end-points.


-  Data-link PDUs are simple under these conditions.
  struct frame
    byte payload[]


    -  But not simple if payload size varies.


Perfect Link Protocol
data-link-sender()
  frame f
  while true
    f.payload = from-network-layer()
    to-physical-layer(f)
data-link-receiver()
  while true
    frame f = from-physical-layer()
    to-network-layer(f.payload)
Rate Mismatches

  -  Remove the rate-matched assumption.

    -  The sender could overrun the receiver.


-  There are two general solutions:

    -  Rate-based transmission.

-  Stop-and-wait transmission.


-  Errors and rate-based transmission don’t go well together.

Stop-and-Wait Sender
data-link-sender()
  frame f, ack
  while true
    f.payload = from-network-layer()
    to-physical-layer(f)
    ack = from-physical-layer()
Stop-and-Wait Receiver
data-link-receiver()
  frame ack
  while true
    frame f = from-physical-layer()
    to-network-layer(f.payload)
    to-physical-layer(ack)
Link Errors

  -  Remove the errorless assumption.

    -  Now frames can be corrupted or lost.

-  Corrupted frames can be tossed for a loss.


-  Losses can be recovered from on the sender side with time-outs.

    -  The receiver makes no assumptions about frame arrivals.


-  Lost acks could result in duplicate frames being sent.

Error-Handling Sender
data-link-sender()
  frame f, ack
  event e
  f.seq-no = 0
  f.payload = from-network-layer()
  while true
    to-physical-layer(f)
    start-timer(f.seq-no)
    e = wait-for-event()
    if e == frame-arrival
      ack = from-physical-layer()
      if ack.seq-no == f.seq-no
        stop-timer(f.seq-no)
        f.payload = from-network-layer()
        f.seq-no = (f.seq-no + 1) mod 2
    // else time-out, corruption
Error-Handling Receiver
data-link-receiver()
  unsigned expected-seq-no = 0
  while true
    frame f = from-physical-layer()
    if frame-uncorrupted(f)
      if f.seq-no == expected-seq-no
        to-network-layer(f.payload)
        expected-seq-no = (expected-seq-no + 1) mod 2
      f.payload = []
      f.seq-no = 1 - expected-seq-no
      to-physical-layer(f)
Summary

  -  The data-link layer offers transmission service to the network layer.

    -  Reliable or not, connectionless or not.


-  Link-channel complexity causes the logical-link and media-access
  control sublayers split.

-  The data-link (and physical) layer is where network abstractions are
  implemented.

-  The end-to-end argument becomes clear at the data-link layer.

References
