Computer Networking Lecture Notes

27 November 2012 • Peer-to-Peer Routing

Outline

What is peer-to-peer routing?
Routing in
- Unstructured networks.
- Structured networks.
- Hybrid networks.

Peer-to-Peer Routing

Peer-to-peer network routing is predominantly anycast routing.
- I want an item like this; get me one.
- Or find me a node that has one.
A routing request is a query for a match to some specification.

Network Architectures

Peer-to-peer network architectures can be divided into
1. Unstructured: unconstrained links and undifferentiated nodes.
2. Structured: constrained links and undifferentiated nodes.
3. Hybrid: constrained links and differentiated nodes.
Network organization increases down the list.

Unstructured Network Routing

An unstructured peer-to-peer network admits arbitrary graphs.
The principle benefits to unstructured networks are
- Dead simple routing protocols.
- Tolerates dynamic behavior.
The principle costs are
- Inefficient and inconsistent results.
- Unpredictable search behavior.

Breadth-First Search

Breadth-first search (BFS) is flooding.
- There’s no central pending-node queue.
- True concurrent execution.
Per-node housekeeping to
- Suppress redundant messages.
- Keep a back-trail for results.
Hop counts and filtering keep down costs.

BFS Example

bfs example

BFS Analysis

BFS is easy to implement.
- Modulo the per-node record-keeping.
BFS results may not demonstrate useful properties.
- Non-minimal path lengths.
BFS is hard to control.
- Exponentially increasing useless searches.
- Multiple matches impinging on the querying node.

Depth-First Search

Depth-first search (DFS).
Per-node housekeeping to
- Suppress redundant visits.
- Keep a back-trail for results.
Hop counts limit search depth from querying node.
- The infinite-graph problem doesn’t apply.

DFS Analysis

DFS is easy to implement.
- Modulo the per-node record-keeping.
Search results demonstrate the usual DFS properties.
- Undistinguished search characteristics.
  - Next-hop choices mildly influential.
- Sub-optimal search results.
DFS is easy to control.
- A meaningful next-hop choice.
- Termination is automatic and complete.

Routing Heuristics

A heuristic is a guideline or rule of thumb that may suggest an improvement.
- Not guaranteed to be effective.
Select a few appropriate heuristics to apply to an algorithm.
- Often other heuristics are needed to undo earlier heuristics’ side-effects.

Iterative Deepening

Iterative deepening is a standard AI search heuristic.
Use the hop count to gradually expand repeated searches.
Transit-node bookkeeping avoids redundant searches on successive iterations.
Timing-out the previous iteration starts the next iteration.
- Up to some maximum hop count.

Directed Choice

Breath- and depth-first searches make random or unconstrained choices.
- Send to all neighbors, or pick some neighbor.
Assume some choices are better than others.
- Some neighbors lead to a solution, others don’t.
Directed choice tries to make better choices.
- Heuristics for better choices.

Results-Based Heuristics

Better choices are those that lead to success in the past.
- Some nodes have more items, and some neighbors lead to better nodes.
Charge each neighbor with successes and failures.
- There’s many success measures.
Choose high-success neighbors over low-success ones.

Query-Based Heuristics

Successful results depend on the query.
- Nodes successful with movies may not be successful with technical reports.
Keep track of which queries each neighbor is notably successful at.
Match each query with the more successful neighbors for that query.
- More heuristics for determining query similarity.

Random-Choice Heuristics

Biasing heuristics don’t react well to changes.
- New or improved nodes aren’t successful and won’t be selected.
Random-choice heuristics combat bias by occasionally choosing at random.
- Second-chance mercy.
New nodes may be marked for a better than random inclusion rate.

Structured Network Routing

A structured peer-to-peer network imposes some organization on the network links.
- The nodes are largely interchangeable outside the routing protocol.
The principle benefits are
- More consistent and complete results.
- More resource-efficient query mechanisms.
The principle costs are more complexity and greater overhead.

Chord

Nodes and data are hashed into large (16-byte, for example) numbers.
- The collision probability is vanishingly small.
Hash values are reduced modulo 2^m, m a system parameter.
Each node i references its successor, the node with the smallest index at least i.
- With modulo wrap.
The result is a Chord ring of nodes.

Chord Ring

a chord ring

Data Storage

Each item is hashed and reduced modulo 2^m.

Item k is stored a node i for the smallest i at least k.

A node contains all items falling between it and its predecessor.

chord data storage

Basic Look-Up

The query item is hashed and reduced modulo 2^m.

The search starts at the lowest indexed node and follows the successor chain.

chord basic search

The search ends when
- the item is found or
- the node index exceeds the query key.

Scalable Chord Search

Basic Chord look-up is linear, which isn’t scalable.
A sub-linear search must make bigger jumps.
Each node has an m-element finger table.
The ith element of node j’s the finger table is a reference to node k.
- K is the smallest node index at least (j + 2ⁱ) modulo 2^m.
- The successor node’s at index 0.

Example

an example finger table

finger table
N₄₊₁		N₂₀
N₄₊₂		N₂₀
N₄₊₄		N₂₀
N₄₊₈		N₂₀
N₄₊₁₆		N₂₀
N₄₊₃₂		N₄₉
N₄₊₆₄		N₇₀

Finger-Table Search

To search for item k using a finger table:
- Find the largest predecessor node for k and continue the search there.
- If the successor is a predecessor for k, continue the search there.
- Search locally.
Finger-table searches are logarithmic in the node count.

Node Management

New nodes get inserted into the ring.
- Predecessor items are transferred from the successor node.
- The new node builds its finger table.
- The old nodes adjust their finger tables.
Departing nodes off-load their items to successors, if possible.
- A periodic stability protocols adjusts the remaining finger tables.

Hybrid Networks

Hybrid peer-to-peer networks impose structure by embracing heterogeneity.
- Layers of more-capable and less-capable nodes.
Each layer is a structured or unstructured peer-to-peer network.
Higher layers do structure and routing, lower layers do storage.
Examples include revised Gnutella and KaZaA.

Hypercubes

Consider 2ⁿ hosts, each uniquely identified by i, 0 ≤ i < 2ⁿ.
Two nodes i and j are neighbors if i and j differ in exactly one bit.
- With n = 3, nodes 7 (= 111) and 6 (= 110) are neighbors.
- Nodes 7 and 2 (= 010) are not.
The resulting graph is an n-dimensional hypercube.

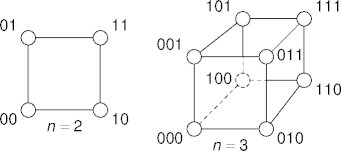

Examples

hypercubes!

Hypercube Routing

To send a message from node i to node j:
- Pick a bit that differs between i and j.
- Send the message along the associated neighbor link.
Each bit in an address represents a dimension in the hypercube.
Routing is linear in the number of address bits (logarithmic in the number of nodes).

Example

To go from 000 to 111:

Edutella

Edutella is an (apparently dead) two-layer hybrid peer-to-peer network.
The upper layer contains superpeers in a hypercube network.
- Superpeers are responsible for node-item mapping (indexing) and routing.
The lower layer contains common peers, each of which
- Connects to a super peer.
- Stores items.

Summary

Peer-to-peer network routing is essentially anycast routing.
Improving network structure increases search efficiency.
- At a cost of search overhead.
Distributed hash tables provide a fairly simple distributed technique for structured-network routing.

References

Routing in Peer-to-Peer Networks (Chapter 3) in Peer-to-Peer Computing by Quang Hieu Vu, Mihai Lupu and Beng Chin Ooi from Springer, 2010.
