Data Structures & Algorithms Lecture Notes

15 September 2010 • Interfaces

---

Outline

• ADT descriptions.
• Interfaces
• Types
• Multiple Inheritance, interfaces, and traits.

An Array ADT

class AnArray {
  ...
  void put(int i, int e) { ... }
  int get(int i) { ... }
  ...
  }

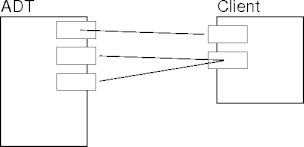

External ADT Views

• A client looking at an ADT sees only the public methods made available by the ADT.
• The set of public methods determines the way clients can interact with an ADT.
  • Sort of.



Abstract ADT Views

• The client can ignore everything but an ADT’s public methods.



What’s Wrong With ADTs?

• An ADT contains much information uninteresting to clients.
  • Implementation details.
  • Non-public methods and data.
• Uninteresting to clients, but necessary to implementers.
  • Implementers and clients have different views of an ADT.
  • And implementers win; how can clients win?

What’s Wrong With ADTs??

• Other array-like ADTs have to be dealt with separately, rather than as a related group.
  • A permutation array looks just like an array, except.



• Is there a client-friendly way to specify the important parts of a class?
• Is there a way to specify array-like behavior without specifying an array?

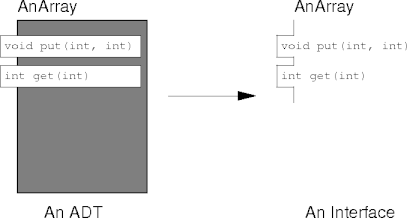

Interfaces

• An interface specifies a ADT’s client-visible features.
  • Specifies, not defines.
• Anything not visible at the interface doesn’t exist, as far as the client’s concerned.
  • This is a fiction, but a convenient one.

Interface Example

interface ArrayADT{

  public void put(int i, int v)
  public int get(int i)
  public boolean find(int v)

  // and so on
  }

• With minimal implementer effort, the client sees only what matters.

Java Interfaces

• A Java interface contains method headers (called signatures).
  • No defined methods.
  • All methods are non-static and public.
• An interface can also contain variables, classes and other interfaces.
  • Interface variables are public static final.
  • Interface classes (e.g., enums or Exceptions) are public static.

Interface Examples

interface Candy {
  public abstract int calorieCount();
  Nuts [] containsNuts();
  boolean hasFlavonoids();
  }

interface 3DRectangle {
  double height();
  double width();
  double length();
  }

Interface Specifications

• Interfaces can be package-local (default) or public.
• Interfaces can extend other interfaces.

  interface ChocolateBar
  extends Candy {
    ChocolateKind chocolateKind();
    // and so on.
    }

  public interface ChocolateBar
  extends Candy, 3DRectangle { ... }


Interfaces and Classes

• A class implements one or more interfaces.

  class CustomArray
  implements ArrayADT {

    public void put(int i, int v) { ... }

    public int get(int i) { ... }

    public boolean find(int v) { ... }

    }


Implementing Interfaces

• Implementing an interface is an obligation to define all methods in the interface.
  • This is compile-time checked.
  • Not defining interface methods is a compile-time fatal error.

Undefined Method Example

$ cat Colors.java
interface Colors {
  public void red();
  public void white();
  void blue();
  }

$ cat FlagColors.java
class FlagColors
implements Colors {
  public void red() { }
  public void white() { }
  }

$ javac FlagColors.java
FlagColors.java:1: FlagColors is not abstract and does not
override abstract method blue() in Colors
class FlagColors
^
1 error

$

Classes and Interfaces

• A class may implement
  • more than one interface.
  • interfaces and extend a class.
  • its own methods.
• An interface may extend another interface.

  interface PrintableArrayADT
  extends ArrayADT {
    void print(Writer out);
    }


Types and Operations

• An instance v’s type determines the allowable operations on v.
• An instance v’s type doesn’t matter if nothing operates on v.
  • v’s type may as well be Object.
• Two extremes:
  • perform no operations on v, or
  • perform every possible operation on v.

Interface and Class Types

• An interface defines a type.
• A class implementing an interface can considered to be of the interface’s type.

  A value of type CustomArray can also be of type ArrayADT.

• Interfaces have other uses (such as pseudo multiple inheritance).

Interface Advantages

• An interface precisely specifies the constituent operations required by a data structure.
  • A CustomArray behaves like an ArrayADT.
• A single interfaces covers many different but similarly behaved data structures.

Trait-Defining Interfaces

• Use interfaces to define traits: small, well-defined collections of behavior.

  interface Comparable
    int compareTo(Object o);

  public interface Destroyable
    void destroy();
    boolean isDestroyed();

  public interface Readable
    int read(CharBuffer cb);


Trait Behaviors

• Mix and match traits to give desired behaviors to classes.

  class Card
  implements Comparable
    int compareTo(Object o) { ... }
    // and so on.

  class SecurityCertificate
  implements Destroyable, Readable
    void destroy() { ... }
    boolean isDestroyed() { ... }
    int read(CharBuffer cb) { ... }
    // and so on.


Trait Specifications

• Use traits to specify exactly and minimally what behavior class instances should have.

  boolean beats(Comparable x) { ... }
  void validate(Destroyable tag) { ... }
  Message read(Readable input) { ... }


• The same class instance may have several roles based on traits.

  SecurityCertificate ticket =
    new SecurityCertificate()
  validate(ticket)
  Message m = read(ticket)


Summary

• Interfaces specify expected class behavior.
• Specify a data structure’s constituent operations in terms of interfaces.
• Think in terms of traits when defining interfaces.

References

• Interfaces, Chapter 9 in The Java Language Specification, 3rd ed. by James Gosling, Bill Joy, and Gilad Bracha, Addison-Wesley, 2005.
• Interfaces and Inner Classes, Chapter 6 in Core Java, vol. 1, 8th ed. by Cay Horstmann and Gary Cornell, Prentice Hall, 2008.
• Use interfaces only to define types, Item 43, from Effective Java, second edition, by Joshua Bloch, Addison-Wesley, 2008.

---
