Computer Algorithms II Lecture Notes

16 October 2008 • Balancing Trees

Outline

Tree Shape Rebalancing Trees AVL Trees Red-Black Trees Caching Splay Trees

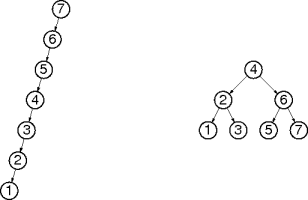

A Question

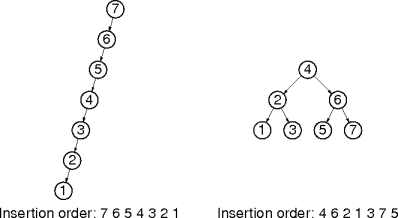

• Here are two binary search trees containing the same data.



  Why are they different?

Data Insertion Order

• Data-insertion order determines a tree’s shape.



• Tree shape influences tree operation performance.

Tree Levels

• A node n is at level i in a tree T if n is i edges away from the root.

  The ith level of T is the nonempty set of all nodes at level i in T.

• A node’s depth d is the node’s level.

• A tree’s height h is the largest level in the tree.

Tree Shape

• Tree operations have good performance when each decision throws away half the data.

  • This occurs when each subtree has half the data.

• This property is captured by the notion of balance.

• A tree is balanced if any two sibling subtrees differ in height by at most 1.

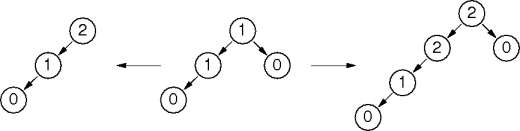

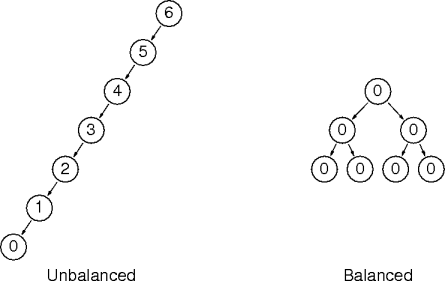

Examples

Representing Balance

• For efficiency, each node maintains balance information for its subtree.

• Balance information can be an integer down to no overhead (pointer encoding).

• Each node stores the difference in its children’s heights.

  • The sign indicates the larger subtree, the magnitude by how much.

Getting Balanced Trees

• Several techniques produce balanced trees:

  • Shuffle the data before inserting it.

    • May not be practical or always applicable.

  • Ocassionally reconstruct a balanced tree.

    • Effective but possibly expensive.

  • Rebalance the tree after every operation.

    • Effective, moderately expensive, complicates operations.

Tree Balance

• A balanced tree can be unbalanced by at most 1.



• Shifting a node from one child to the other restores balance.

  • For some interpretation of “shifting”.

Node Rotations

• A node rotation lifts nodes up in the tree.



• Node rotation is the basic rebalancing operation.

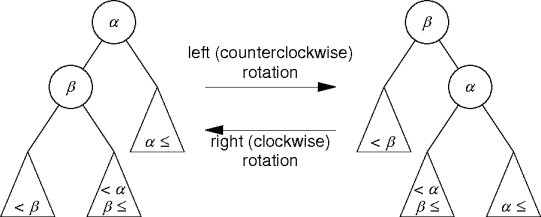

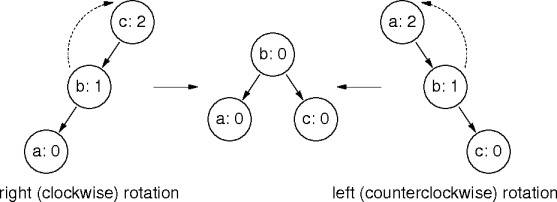

Example Node Rotations

• Single rotations redistribute tree heights and maintains the BST property.



Tree Rebalancing

• An insertion or deletion can unbalance the whole tree.

  • But only by one.

• A rotation restores balance locally.

  • Walk back to the root, rotating into balance as needed.

• This does logarithmic work per insertion or deletion.

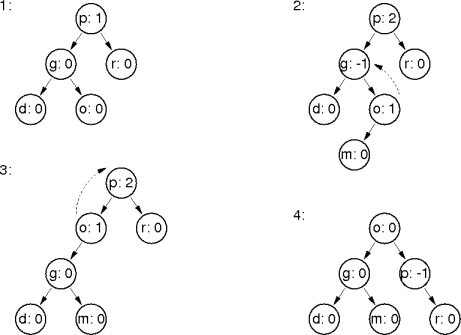

Example Rebalancing

AVL Trees

• The AVL tree is a binary search tree that’s always in balance.

  • Developed in 1962 by Georgii Adel’son-Vel’sky and Yevheniy Landis.

• Each unbalancing insertion or deletion restores balance as part of its operation.

• Not so popular these days.

  • More efficient and simpler alternatives are available.

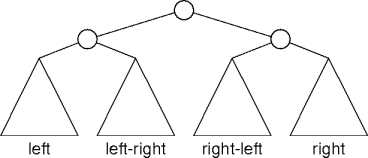

AVL Rotations

• AVL trees require four kinds of rotations.



• The left-right and right-left rotations are double rotations.

  • They each have three cases.

AVL Balance

• At most one (possibly double) rotation is enough to restore balance after an insertion.

• Restoring balance after a deletion may require O(log n) rotations.

• Search is always O(log n).

Almost-Balanced Trees

• Constantly maintaining balance can be expensive.

  • Particularly if insertions and deletions outnumber searches.

• Let the tree drift out of balance, and fix it up when it gets too out-of-balance.

  • Most operations are now cheaper.

  • Some operations are more expensive.

    • However, they’re still O(log n).

Red-Black Trees

• The red-black tree is an example of an almost-balanced tree.

  • Developed in 1972 by Rudolf Bayer.

• A red-black tree is a binary search tree.

  • The edges of the tree are either red or black.

• Red-black trees implement the STL sorted-associative containers.

The Red-Black Property

• The red-black property generalizes height.

  1. Every path from root to leaf has the same number of black edges.

     • All paths are roughly in balance.

  2. No path contains two consecutive red edges.

     • Paths do not drift too far out of balance.

     • “Too far” means “at most ×2”.

Example Red-Black Tree

Inserting into the left sub-tree requires rotations. There are (potentially) two rotation-free insertions into the right subtree.

• Right-subtree insertions bring the tree closer to proper (non-red-black) balance.

Maintaining Almost Balance

• Insertions and deletions must maintain the red-black propery.

  • Using tree rotations and edge color-flipping.

• The no consecutive red-edges property requires keeping track of more information.

  • Parents and grandparents.

  • Rotations cover larger portions of the tree.

  • There are more cases to implement.

Abandoning Balance

• Data access is frequently unbalanced.

  • A book chapter on Italy contains a lot of “Rome” but little of “Paris”.

  • Seniors register for classes two days before juniors do.

• Balance is unhelpful when data accesses are skewed.

  • Improve performance by recognizing and exploiting unbalanced access.

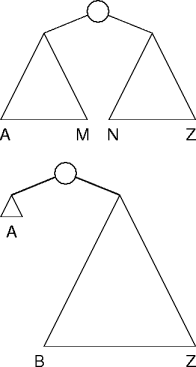

Unbalanced Trees

With unknown (or random) access patterns, balance is best. With biased access patterns, unbalance the tree to match the bias. But what if the access bias changes?

Caching

• Caching exploits unbalanced access.

• A cache is a high-performance database.

  • Both search and access are fast.

  • Caches are also usually expensive and small.

• Skewed accesses should be satisfied out of the cache.

  • Other accesses go to the main data set (a cache miss).

A List Cache

• Searching a linked list has linear cost.

  • Ordering doesn’t change that.

• When an element is accessed, move it to the list head.

• The list head is the cache.

  • Skewed accesses are satisfied within a few elements.

  • The cache adjusts to changes in access skew.

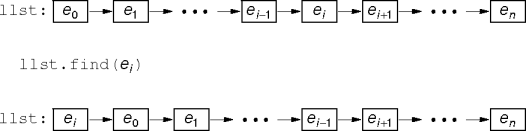

List Caching Example

• The list front becomes a hot spot under skewed access.



• This is the move-to-the-front heursitic.

Caching Tree Accesses

• Tree accesses can be cached by moving data to the root.



• But unordered trees are just expensive lists.

  • Worst case behavior is now O(n).

  • Extra space and complexity overhead.

Splay Trees

• A splay tree is a caching binary search tree.

  • Developed by Daniel Sleator and Robert Tarjan in 1985.

• Splay-tree operations provide amortized O(log n) operations.

  • Maintaining search-tree order has its price.

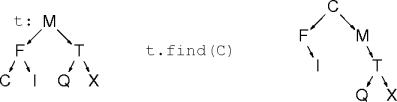

Splaying

• Move-to-the-root is done by splaying operations.

  • Each operation also appliess splays to the element accessed.

• A splaying operation is a sequence of rotations.

  • Each rotation moves a node up the tree.

  • The current node is moved to the root.

Splay Insertion

• Insert the new value, if needed, then splay it.

• Example: insert I into a tree.



Splay Deletion

• Splay deletion is similar to BST deletion:

  1. Find the old value, splaying it.

  2. Delete the root and the old value.


  3. Find the max in the min subtree (or vice versa) and splay it.

  4. Add the other subtree as the absent root child.

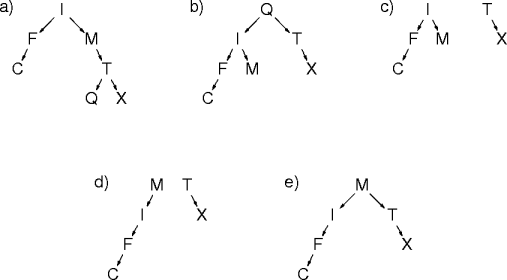

Splay-Deletion Example

• Delete Q from the tree.



Summary

• Ordinary binary-search tree performance is data dependent.

• Self balancing trees guarantee performance.

  • At an implementation-complexity cost.

• Sometimes “almost” is good enough.

  • Particularly if it’s much less expensive.

• The caching heuristic is valuable; recognize and exploit it.

References

• Binary Search Trees (Section 12.4), Tree Balancing: AVL Trees (Section 15.2) and 2-3-4 Trees, Red-Black Trees, B-Trees, and other Trees (Section 15.3) in ADTs, Data Structures, and Problem Solving with C++ second edition by Larry Nyhoff, Prentice Hall, 2005.

• Generic Red-Black Tree and its C# Implementation by Richard Wiener in Journal of Object Technology, March-April 2005.

• Splay Trees by Sanjeev Saxena in Handbook of Data Structures and Applications, Dinesh Metha and Sartaj Sahni, editors, Chapman & Hall, 2005.

• An Evaluation of Self-Adjusting Binary Search Tree Techniques by Jim Bell and Gopal Gupta in Software—Practice and Experience, April, 1993.
