Lecture Notes for CS 509

14 October 2003 - STL Lists

List Behavior

• Lists are a sequential data type, but not like arrays or vectors.

  • Lists do not have indexed access via [] or at().

  • Lists have arbitrary, efficient insert and delete operations.

    • Efficient inserts and deletes can happen anywhere in a list.

  • Lists have good invalidation behavior.

  • Lists have restricted iterators; no jumping.

• Lists are doubly-linked; traversals cost the same in either direction.

  • Lists are not circular; they have two ends.


The List Class

• Defined in the <list> header.

• The single template parameter gives the list-element type.

  • Forgetting, as always, the allocator template parameter.

• The list class has a number of list-specific member functions.

  • They make up for the weaker list iterators.

Constructors

• The default constructor list<T> l.

• The size and value constructor list<T> l(n, v).

  • v is optional with a T default constructor.

• The copy constructor list<T> l2(l1).

  • l1 list elements are copied into l2, not shared with l2.

• The iterator-range constructor list<T> l(start, end).

  • The start and end iterators can point into any container, not just a list.

  • The elements are copied into l, not shared with l.

Value Access

• No element access via [] or .at().

• Iterator access as always.

• First and last element access via front() and back().

Growing and Shrinking Lists

• size() and max_size() member functions.

• No reserve() and capacity() member functions.

• l.push_back(v), l.pop_back(), l.push_front(v), and l.pop_front() member functions.

• l.resize(n) changes the number of elements in l to n.

  • This may add or remove elements at the end of the list.

  • Default values are added if necessary.

• l.resize(n, v) changes the number of elements in l to n.

  • This may add or remove elements at the end of the list.

  • Copies of the value v are added if necessary.

Inserting List Elements

• insert(i, v) inserts the value v immediately before (to the left of) the value referenced by the iterator i.

  • Return an iterator to v.

• insert(i, n, v) inserts n copies of the value v immediately before (just to the left of) the value referenced by the iterator i

  • Returns nothing.

• insert(i, start, end) inserts the values denoted by the iterator range start,end immediately before the value referenced by the iterator i.

  • Returns nothing.

• None of these operations invalidate iterators.

Removing List Elements

• erase(i) deletes the value referenced by the iterator i.

• erase(s, e) deletes the values denoted by the iterator range (s, e)

  • Both return an interator to the next (to the right) element.

• remove(val) removes all elements with the given value.

• remove_if(p) removes all elements for which p() returns true.

• clear() removes all elements.

• Only iterators referencing deleted elements are invalidated.

Splicing

• Splicing is a form of insertion available only to lists.

• List splicing moves a chunk of one list to another list.

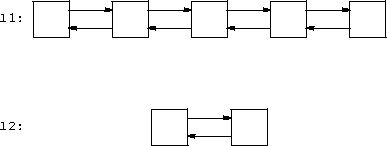

  • Before

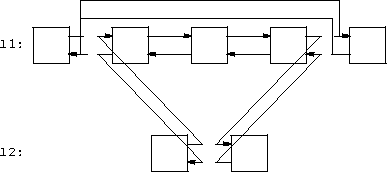

  • After


Splice Operations

• l1.splice(i, l2) inserts the list l2 before the list l1 value referenced by iterator i.

  • l2 is empty after the splice.

  • l1 and l2 must be different.

• l1.splice(i1, l2, i2) inserts the l2 value referenced by the iterator i2 before the list l1 value referenced by iterator i1.

  • The value referenced by i2 is deleted from l2.

  • l1 and l2 need not be different.

• l1.splice(i1, l2, 2, e) inserts the l2 values referenced by the iterator range (s, e) before the list l1 value referenced by iterator i1.

  • The values referenced by (s, e) are deleted from l2.

  • l1 and l2 need not be different, but the iterator range may not contain i1.

• These operations invalidate no iterators.

  • Assuming you're not using allocators(?).

List Relations

• Equality and less-than.

Iterators

• The usual types

• List iterators are bidirectional iterators

  • no jumping around via +, -, +=, or -=.

  • No distance measurement via -.

  • No relations other than equality.

  • Some generic algorithms don't work on lists.

    • Sorting in particular.

• The usual member functions

List Member Functions

• List member functions make up for the loss of generic algorithms.

  • Most are faster than the corresponding generic algorithm.

    • Pointer moving rather than data moving.

• l.sort() sorts l in O(n²) time.

• l.sort(c) sorts l using the comparison c.

• unique() replaces consecutive runs of a value with one copy of the value.

• unique(p) replaces consecutive runs with a single value using p to determine when adjacent values are equal

• l1.merge(l2), l1.merge(l2, c) merges l2 into l1, using c; l2 is empty after.

  • Both l1 and l2 should be sorted; the merged list is sorted too.
