Lecture Notes for Advanced Programming II

11 September 2003 - Stream I-O

History

• C didn't include I-O as part of the language.

  • I-O was provided by the stdio library.

• C++ continued that tradition.

  • No I-O in the language, I-O from the AT&T stream I-O library.

• Stream I-O was added to the C++ standard library.

  • Similarly for stdio in C.

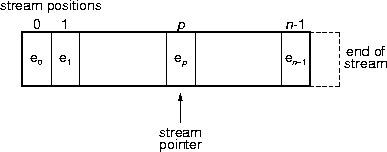

Stream Structure

• A stream is a sequence of data elements.


  • Stream position

  • Stream pointer

  • Stream data elements

• The stream ends.

  • The end-of-stream (or eos) position.

Stream Types

• Streams can be distinguished by two main characteristics:

  1. data movement and

  2. data-element type.

• Data can move into or out of a stream.

  • Input streams move data out of a stream.

  • Output streams move data into a stream.

  • Input-output streams do both.

• The data-element types can be arbitrary.

  • The two major ones are char and wchar_t.

  • Others are possible but probably require a lot of work.

  	char	wchar_t
  input	<istream>	<wistream>
  output	<ostream>	<wostream>
  both	<iostream>	<wiostream>

Unformatted Input

• Unformatted input copies data elements from the stream.

  • The element referenced by the stream pointer is read.

  • The stream pointer moves right one for each element read.

  • No element can be read from the end-of-stream position.

• Some read operations.


  istream & istream::get(char & c)

  istream & istream::getline(
    char * str, streamsize cnt)

  istream & istream::ignore()

  istream & istream::unget()

  streamsize istream::gcount()



Unformatted Output

• Unformatted output copies data elements to the stream.

  • The element referenced by the stream pointer is written.

  • The existing element, if any, is overwritten.

  • The stream pointer moves right one for each element written.

  • The end-of-stream position shifts up one to the right if written.

• The write operations.

  ostream & put(char c)

  ostream & write(
    const char * s, streamsize cnt)

  ostream & flush()


Stream States

• A stream operation can put a stream in one of four states:

  1. fail when a soft error occurred during the operation.

  2. bad when a hard error occurred during the operation

  3. eof when the end-of-stream condition occurs during the operation.

  4. good when none of the other states occured during the operation.

• Not all operations can cause all states.

  • Output can't cause the eof state and probably won't cause the fail state.

• Streams have four predicates to test stream state.

  • good(), fail(), bad(), and eof().

• Stream state is sticky; once set, it stays set until clear()ed.

Non-Good Stream States

• A recoverable, transient, non-fatal error causes the fail state.

  • A format error, a file not found.

• A non-recoverable, permanent, fatal error causes the bad state.

  • The network collapses, a disk falls over.

• The fail and bad states are mostly implementation dependent.

• The eof state occurs when

  1. the stream pointer's at the end-of-stream position, and

  2. the end-of-stream postion is read.

  • Just moving the stream pointer to the end-of-stream position does not set the eof state.

The EOS Stream State

• The eos state occurs when

  1. the stream pointer's at the end-of-stream position, and

  2. the end-of-stream postion is read.

  • Just moving the stream pointer to the end-of-stream position does not set the eof state.

  Don't do this	Do this
  while cin.eof() cin >> x // whatever	while true cin >> x if cin.eof() break // whatever

• Remember: should you read the text before or after the test?

State Test Operators

• The bang unary prefix operator ! tests a stream's fail state.

  • !cin is the same as cin.fail().

    std::ofstream of(filename)
    if (!of)
      // Can't open the file.


• Streams also convert to void * pointers.

  • And void * pointers convert to a boolean value.

  • If cin.fail() is true, then cin -> 1 -> true.

  • If cin.fail() is false, then cin -> 0 -> false.

• Favor the state prediates over the test operators.

  • Make your meaning clear.

  • Test for more than just failure (eos in particular).

Formatted Input-Output

• An int is a 32-bit (say) number.

  • What number is 000000000000000000000011111010011?

• Computers have the same problem: an integer is a 9-decimal-digit (say) number.

  • But a computer can't deal with 2003.

• Similarly, humans understand lots of symbols.

  • The 127 ASCII characters, say.

• Computers, on the other hand, only understand the symbols 0 and 1.

• Formatted I-O helps deal with both these problems.

  • Translation between binary and decimal notations.

  • Translation between binary and richer symbol sets.

Data Type Formats

• A value's format depends on the value's type.

  • Integers have the format -?[0-9]+.

  • Floating-point numbers have a complicated format.

• Space characters are not part of any value format.

  • Initial space characters are skipped.

  • Trailing space characters end the value.

  • This is true for characters and strings too.

• The Boolean value true has format 1; false has format 0.

  • This can be changed, however.

Formatted I-O Operators

• The binary stream extraction operator >> performs formatted input from a stream.

  istream >> variable


• The binary stream insertion operator << performs formatted output to a stream.

  ostream << value


• The value of the extraction or insertion expression is the stream being read or written.

  • This allows cascaded operators.

    istream >> x >> y

    ostream << "y = " << y << "\n"


Stream Manipulators

• How do you output a hexidecimal number?

  • The default is to output decimal numbers.

• Stream manipulators are functions that influence the way streams operate.

  • They influence formatting mostly, but can have other effects.

• You are probably familar with the endl and perhaps the flush manipulators.

Sticky vs. Non-Sticky Stream Manipulators

• A sticky stream manipulator perminently change stream behavior.

  • Permanently until the next change, that is.

  • The hex manipulator sets the base to hexidecimal.

    std::cout << 18 << std::hex << ' '
              << 19 << ' ' << 20


    produces

    18 13 14


• A non-sticky stream manipulator only effects the stream for the next value.

  • The setw() manipulator sets the field with for the next value read or written.

    cout << 3 << std::setw(4) << 4 << 5


    produces

    3   45


• Remembering which manipulator is which is a pain.

File Streams

• A stream can be attached to many data sources, files for example.

• Streams that attach to files are known as fstreams.

  • A file istream is an ifstream.

  • A file ostream is an ofstream.

  • A file iostream is an fstream.

  • Use the <fstream> header for them all.

• The .close() member function dis-associates a stream from a file.

  • This is called in the destructor, but call it explicitly anyway.

  • Recover resources early.

  • Demonstrate you know what you're doing.

• The .is_open() member predicate determines if an association exists.

Opening File Streams

• fs.open(fname) associates file stream fs and the file with the name fname using the default modes.

  • For ifstreams, the default mode is reading.

  • For ofstreams, the default mode is writing.

  • For fstreams, the default mode is reading and writing.

• fs.open(fname, modes) uses the modes modes instead of the default modes.

  • Defined modes are

    .

    in	open for reading
    out	open for writing
    app	writes append
    ate	start at the eos position
    trunc	empty the file
    binary	do not modify characters

  • Not all mode combinations are allowed.

String Streams

• A stream attached to a string is a string stream.

  • An input string stream is an istringstream.

  • An output string stream is an ostringstream.

  • An input-output string stream is a stringstream.

  • All are defined in <sstream>.

• The ss.str() member function returns the string associated with the string stream ss.

• The ss.str(str) member function sets the string associated with the string stream ss to the string str.

  • The string stream constructors can also do this.

    istringstream is("hello");


    is the same as

    istringstream is;
    is.str("hello");


This page last modified on 16 September 2003.
